*This device is still in development as a result some specifications may change when going into production.

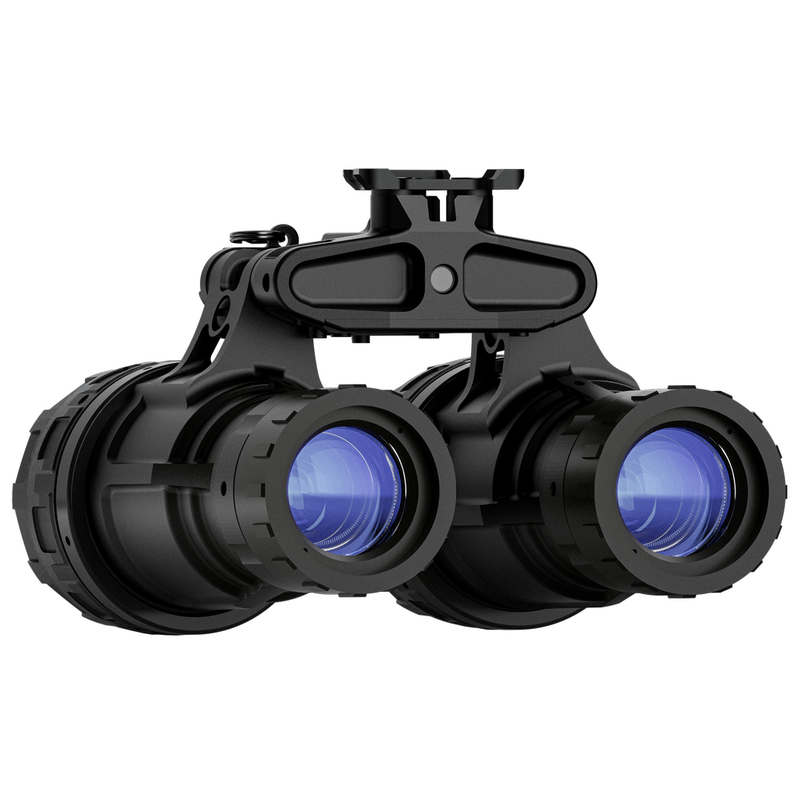

U.A.N.V.B.- O.C.R. "Samurai Ruggedized"
Full feature binocular that houses all control switches on the battery pack at the rear of the helmet machined from 7075-T6 aerospace grade aluminum.
The Ultralight Articulating Night Vision Binocular Out-board Control Ruggedized (UANVB-OCR) "Samurai-Ruggedized" is a lightweight, durable binocular system made from aerospace-grade 7075-T6 aluminum. It features outboard controls that can be accessed through a control pack. The design, crafted using advanced CNC machining, is ultra-light yet strong, and includes a single-piece pod for added durability.
The "Samurai" binocular system is unique because it moves all controls and power to the rear of the helmet, allowing users to adjust settings without losing situational awareness or control of their weapon. This setup also distributes the weight more evenly across the head, reducing neck strain during extended use.
Key features include manual gain control, individual pod shutdown, adjustable pod tension, an IR illuminator, and low battery alerts. There are various control packs available with analog or digital controls, and different power options (2x CR123A or 4x AA batteries), offering 50+ or 60+ hours of continuous use.
- 7075-T6 aluminum construction
- Manual gain control located on control pack
- Toolless IPD stops included
- External power port (LEMO 00B)
- User adjustable pod tension
- 100+ hours of battery life (4x CR123A)
- IR illuminator
- Low battery indicator
- Individual pod on/off when articulated
- Designed to meet and exceed IP68+ and MIL-STD-810H standards
- Lifetime repair or replacement warranty
Full Specs can be found lower on the page.
Every Nocturn Industries housing comes with a lifetime warranty, because we don’t just build durable systems, we stand behind them forever
Lifetime repair or replacement of all housing components no questions asked.
(Does not cover damages to intensifier tubes or lens assemblies)
Compatible with PVS-14 spec optics and 3 Contact pad style 18mm MX-11769, 18mm MX-11769 style with EGAC pigtail removed, and replaced with adapter, or MX-10160 with loss of manual gain
Looking to Buy?
Why the Samurai Ruggedized?
Wondering why you should choose the U.A.N.V.B.-S.C.R. "Samurai Ruggedized"?
Lightweight Design
The U.A.N.V.B.-S.C.R. "Samurai Ruggedized" weighs only 428 grams at it lightest configuration.
Lifetime Warranty
Our housings are backed with a Lifetime Warranty guarantee.
Durability
Designed to meet and exceed military drop test standards.
| Specifications | |
|---|---|
Housing Material The primary material the housing is made of.
|
|
Coating The color options available for housing and the coating that is associated with them.
|
|
Housing Weight The weight of the housing only.
|
|
Device Weight Standard Battery weight is included. This weight is measured with standard optics. Weight can vary based on optics and image intensifiers.
|
|
Device Weight Lightweight Battery weight is included. This weight is measured with RPO 3.0 optics. Weight can vary based on optics and image intensifiers.
|
|
Onboard Power The type of battery option(s) that are available for the housing.
|
|
Outboard Power The type of external power port the housing has attached to it.
|
|
Manual Gain Ability for the user to control the brightness of the image, making it clearer in low light by increasing the sensitivity of the device.
|
|
IR Illuminator An IR illuminator is a device that emits invisible infrared light to enhance the performance of night vision equipment in low or no light conditions.
|
|
Individual pod on/off The pods of the night vision housing will turn off automatically when rotated out of the way and turn on when rotated down. This is done individually per side.
|
|
Tube Type Type of image intensifier tubes that are compatible with the housing.
|
|
Low Battery Indicator A red glowing ring will start blinking around the outside edge of the tube when battery life is low.
|
|
Ingress and Durability |
|
