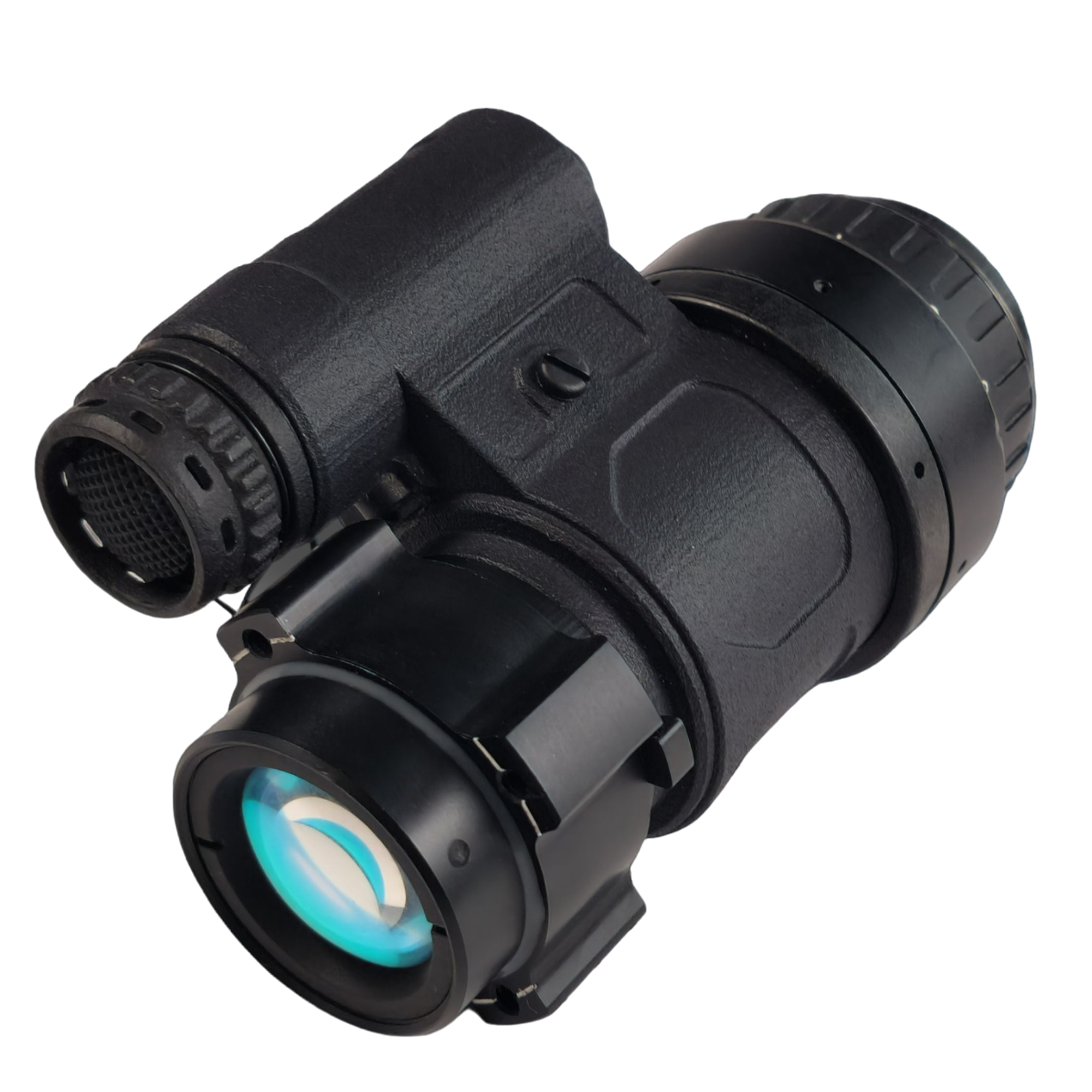

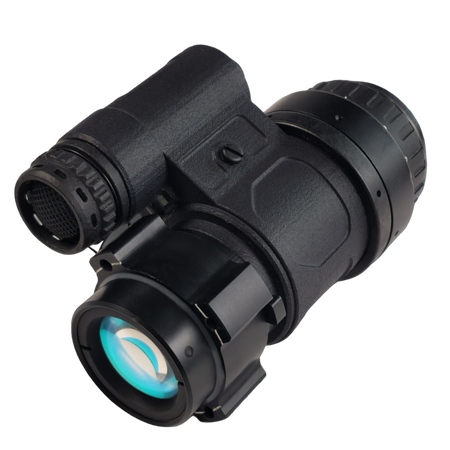

ANVIS 6/9* Night Vision Monocular UANVM -

ANVIS 6/9* Night Vision Monocular UANVM - "Tanto"

Regular price $574.00
Regular price Sale price $574.00
Shipping calculated at checkout.



The Ultralight Adaptable Night Vision Monocular

The cornerstone of our adaptable series of night vision devices. This unit mounts via a standard PVS-14 J-arm mount. A unique feature of this monocular is its ability to be adapted to a proprietary powered articulating dual bridge mount called the TAB (Tanto Articulating Bridge) “Daisho” with minimal tools or extra parts. The innovative design allows users to transform their monoculars into an articulating binocular in seconds or go from a binocular back to a monocular to share with a partner. To transform into the binocular, simply remove the battery cap and battery, insert the bridge into the battery compartment, and tighten the rear clamp screws on the bridge, done. The bridge enables the use of a single battery for both tubes, has built in IP stops similar to the UANVB “Katana”, and other features when released.

*The Tanto Articulating Bridge will be released at a later date.

It is simple with a minimalist lightweight design. Push button on/off in the cap to reduce weight and reduce the footprint of the monocular. When assembled to the TAB “Daisho” bridge extra features are enabled such as articulation to the side for single or dual eye use. The articulating design also enables users to operate vehicles without limiting head space by eliminating the need to stow the unit upright or to tuck the pods against the helmet when stowed.

This unit is light weight without compromising strength. It is rugged and has been drop from the NATO 1.5 meter drop test standard onto concrete, as well as meets and exceeds MIL-STD-810G.

Cerakote Color: Black

Lead Times

*This product is made to order* The current lead time for this product is 6-8 weeks dependent upon tube and optic availability

Information

Description

The Ultralight Adaptable Night Vision Monocular

The cornerstone of our adaptable series of night vision devices. This unit mounts via a standard PVS-14 J-arm mount. A unique feature of this monocular is its ability to be adapted to a proprietary powered articulating dual bridge mount called the TAB (Tanto Articulating Bridge) “Daisho” with minimal tools or extra parts. The innovative design allows users to transform their monoculars into an articulating binocular in seconds or go from a binocular back to a monocular to share with a partner. To transform into the binocular, simply remove the battery cap and battery, insert the bridge into the battery compartment, and tighten the rear clamp screws on the bridge, done. The bridge enables the use of a single battery for both tubes, has built in IP stops similar to the UANVB “Katana”, and other features when released.

*The Tanto Articulating Bridge will be released at a later date.

It is simple with a minimalist lightweight design. Push button on/off in the cap to reduce weight and reduce the footprint of the monocular. When assembled to the TAB “Daisho” bridge extra features are enabled such as articulation to the side for single or dual eye use. The articulating design also enables users to operate vehicles without limiting head space by eliminating the need to stow the unit upright or to tuck the pods against the helmet when stowed.

This unit is light weight without compromising strength. It is rugged and has been drop from the NATO 1.5 meter drop test standard onto concrete, as well as meets and exceeds MIL-STD-810G.

Specifications

Material(s)

Impact resistant polymer

____________________

Finish

H-Series Cerakote
(Matte Black, Coyote, and OD)

____________________

Tube Type

18mm MX-10160 style or MX11769 style with EGAC pigtail
removed.

____________________

IR Illuminator

No

____________________

Individual Pod on/off

Only when paired with TAPB "Daisho" Bridge

____________________

Housing Weight

1.83 oz. / 0.11 lbs / 52g

____________________

Device Weight Standard

8.15 oz. / 0.51 lbs / 231 g

(Mil-Spec PVS-14 lenses and Photonis Image Intensifiers)

____________________

Device Weight Lightweight

7.20 oz. / 0.44 lbs / 204 g

(RPO 3.0 PVS-14 lenses and Photonis Image Intensifiers)

____________________

On-Board Power

CR123A onboard with a runtime of 40+ hours

____________________

Out-Board Power

No.

*Pair with TAPB "Daisho", which can have an optional external power port."

____________________

Manual Gain Control

No

____________________

Mount Style

PVS-14 J-arm style mount

____________________

Ingress Rating

Exceeds IP-68, and MIL-STD-810H

____________________

Warranty

Lifetime repair or replacement of all housing components no
questions asked. (Does not cover damages to intensifier tubes.
or lens assemblies)



FAQ

*TO BE ADDED SOON*
