PVS-15 Katana

Devices are made to order, estimated minimum wait times are 8-10 weeks.

Conversions and build services are included with purchase.

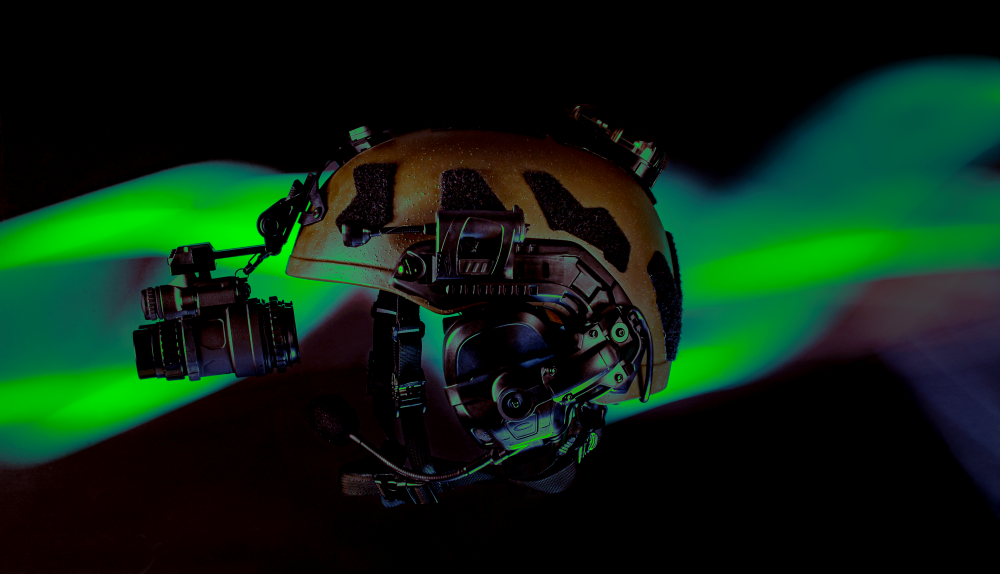

The Ultralight Articulating Night Vision Binocular

This conversion for the PVS-15 platform reduces the weight of a fully built standard PVS-15 by 2.9oz and gives the users full articulation of the binocular. The articulating design allows users to use one eye or both eyes enabling the simultaneous use of a thermal optic or other non-passive aiming systems. This also enables users to operate vehicles without limiting head space by eliminating the need to stow the unit upright or to tuck the pods against the helmet when stowed.

It is simple with a minimalist design. An onboard battery with no remote power keeps things simple and wires off the helmet. Push button on/off in the cap to reduce weight and reduce the footprint of the bridge. Individual pod power on/off when articulated to the side for single or dual eye use and to eliminate backsplash when stowed or rotated out.

An original new “Friction Lock Interpupillary Adjustment” feature allows users to quickly and easily set IP stop distance with a simple rotate into place and forget design. No tools or knobs.

This unit is light weight without compromising strength. It is rugged and exceeds MIL-STD-810G plus has been drop tested to the NATO 1.5 meter drop test standard. All our products are designed and hand built in New Hampshire, USA.

Material: Polymer

Tube type: 18mm MX-10160 style

Color: Black (Cerakote), Coyote (Cerakote), OD (Cerakote)

Weight:

Standard PVS-15 w/ AA Battery: 22.7oz/1.42Ibs/643.5g

UANVB “Katana” PVS-15 w/ CR123A Battery: 19.8oz/1.24Ibs/561.3g

On board power: CR123a

Out board Power: Optional LEMO port

*DISCLAIMER: Do not use onboard power and remote power simultaneously. Main power controlled by battery pack when remote power is utilized.

IR Illuminator: No

Pod power off when rotated to side: Yes (Individually)

Ingress rating: IP68

Mount style: Dovetail

Warranty: Lifetime repair of all housing components no questions asked. (Does not cover damages to intensifier tubes or lens assemblies)

Material(s)

Impact resistant polymer & 6061-T6 aerospace grade
aluminum, aerospace Grade 4 Titanium

____________________

Finish

H-Series Cerakote
(Matte Black, Coyote, and OD)

____________________

Tube Type

18mm MX-10160 style or MX11769 style with EGAC pigtail
removed.

____________________

IR Iluminator

No

____________________

Individual Pod on/off

Yes, individually.

____________________

Housing Weight Reduction

2.42 oz / 0.15 lbs / 68.5g

____________________

On-Board Power

CR123A onboard with a runtime of ~25hours

____________________

Out-Board Power

Optional LEMO port

____________________

Manual Gain Control

No

____________________

Ingress rating

Exceeds IP-68, and MIL-STD-810H

____________________

Warranty

Lifetime repair or replacement of all housing components no
questions asked.(Does not cover damages to intensifier tubes.
or lens assemblies)
