UANVB-R Katana-Ruggedized Night Vision Binocular
LEAD TIMES AND OPTIC INFORMATION CAN BE FOUND BELOW THE ADD TO CART BUTTON.
This product is made to order with a 6-8 week lead time.
"Standard Optics"Standard mil-spec or equivalent PVS-14 optic set. These optics meet or exceed the mil-spec optical and submersion performance requirements. 40 Degree Field of View.
"RPO 3.0 Optics"These optics are lighter than the standard PVS-14 optics. Eyepiece comes with Nocturn Industries Lightweight Diopter installed. 40 Degree Field of View
"Boomslang Optics"These optics are lightweight while having a 50 Degree Field of View.
Specification name | Specification Value |
---|---|
Color pattern | Black, Coyote Brown, OD Green |
-
Onyx Filter (Black and White) Night Vision Lens Filter
Regular price $25.00 USD -
Bikini Cover PVS-14 Night Vision Lens Protector
Regular price From $9.00 USD -
Lens Protector
Regular price $35.00 USD -
-
Lens Cleaner Pen
Regular price $10.00 USD

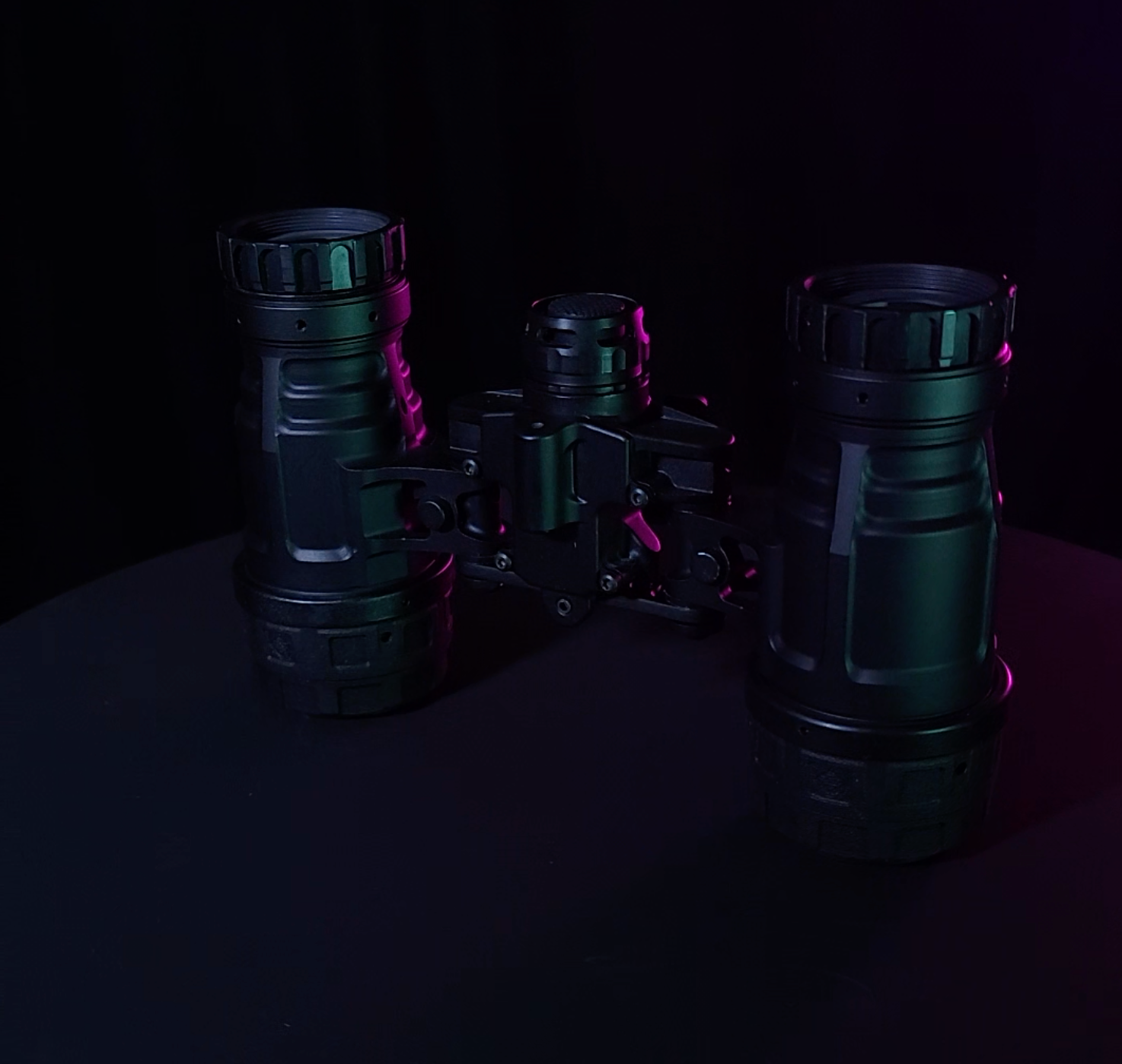

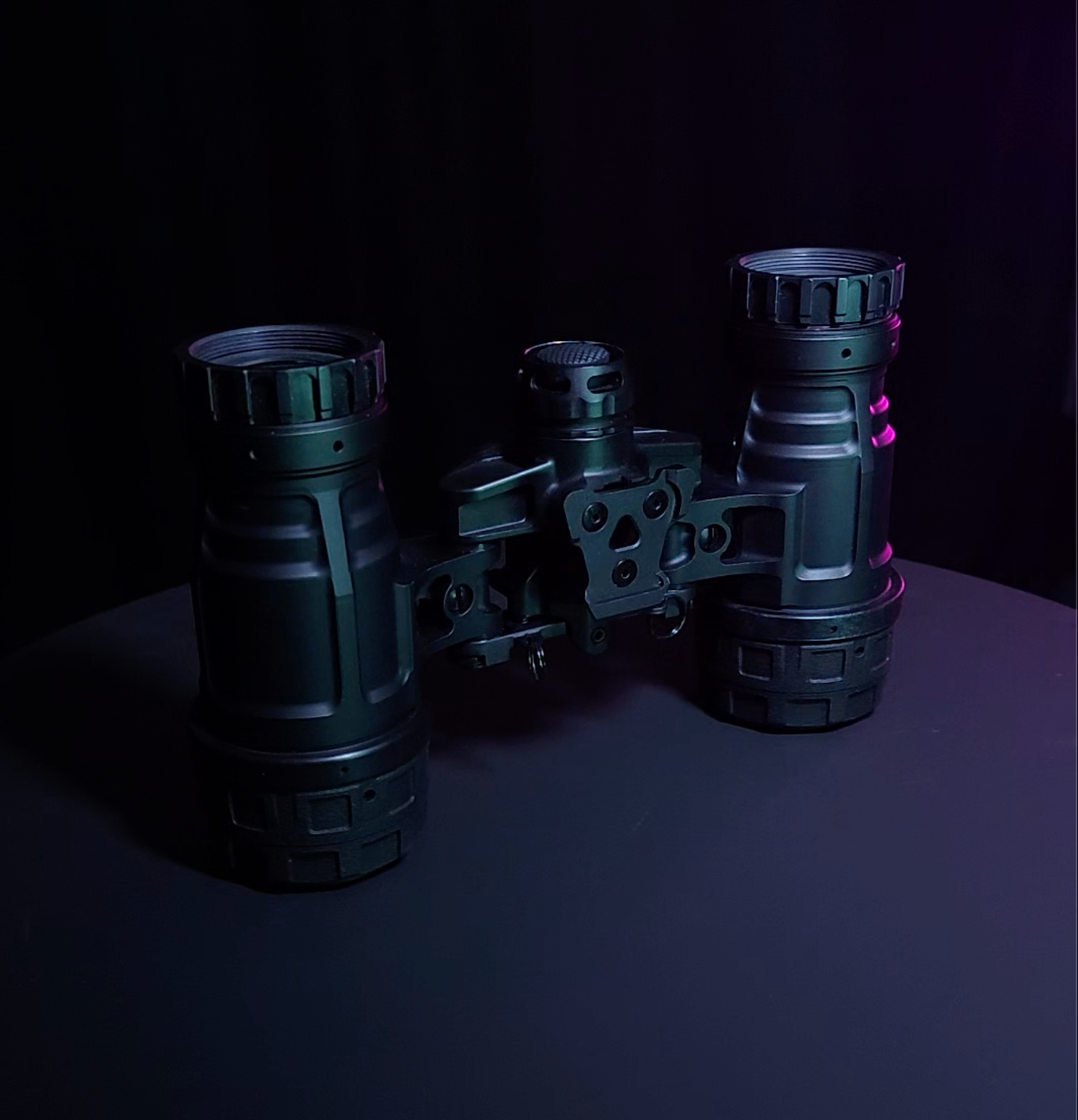

ABOUT THE U.A.N.V.B-R "KATANA RUGGEDIZED"
The Ultralight Articulating Night Vision Binocular - Katana Ruggedized (UANVB-R) “Katana Ruggedized” is a articulating binocular housing made of high strength aerospace grade 7075-T6 aluminum. Using advanced multi-axis CNC machining an ultra lightweight and robust design is achieved, including an optimal single piece pod geometry. This binocular includes features such as individual pod stow shutoff, IPD stops, user adjustable pod tension, and low battery indicator. The device is powered on-board by a single CR123A for a continuous runtime of ~25 hours, and equipped with a LEMO port for external power pack use to achieve extensive run time.
Specifications | |
---|---|
Housing Material The primary material the housing is made of.
|
CNC machined 7075-T6 & 6061-T6 aerospace grade aluminum, aerospace Grade 4 Titanium.
|
Coating The color options available for housing and the coating that is associated with them.
|
Mil-standard Type III class II hard anodize for Black. H-Series Cerakote for Coyote Brown and OD Green.
|
Housing Weight The weight of the housing only.
|
5.50 oz. / 0.35 lbs. / 156 g
|
Device Weight Standard Battery weight is included. This weight is measured with standard optics. Weight can vary based on optics and image intensifiers.
|
20.67 oz. / 1.29 lbs. / 586 g
|
Device Weight Lightweight Battery weight is included. This weight is measured with RPO 3.0 optics. Weight can vary based on optics and image intensifiers.
|
16.23 oz. / 1.02 lbs. / 460 g
|
Onboard Power The type of battery option(s) that are available for the housing.
|
Single CR123A with a runtime of 26+ hours.
|
Outboard Power The type of external power port the housing has attached to it.
|
Yes, LEMO 00B 2-pin.
|
Manual Gain Ability for the user to control the brightness of the image, making it clearer in low light by increasing the sensitivity of the device.
|
No
|
IR Illuminator An IR illuminator is a device that emits invisible infrared light to enhance the performance of night vision equipment in low or no light conditions.
|
No
|
Individual pod on/off The pods of the night vision housing will turn off automatically when rotated out of the way and turn on when rotated down. This is done individually per side.
|
Yes
|
Tube Type Type of image intensifier tubes that are compatible with the housing.
|
18mm MX-10160 or MX-11769 style (EGAC pigtail removed)
|
Low Battery Indicator A red glowing ring will start blinking around the outside edge of the tube when battery life is low.
|
Yes
|
Ingress and Durability |
Exceeds IP-68, and MIL-STD-810H
|

We believe in the durability of our housings so much that we include a lifetime warranty with them.*
All our housings are designed and tested to meet and exceed mil-spec standards.
*Lifetime repair or replacement of all housing components no questions asked. (Does not cover damages to intensifier tubes or lens assemblies)
