*This device is still in development as a result some specifications may change when going into production.
Lead Times
| Specification name | Specification Value |
|---|---|
| Color pattern | Black, OD Green Cerakote, Coyote Brown Cerakote |
Press & drag to view

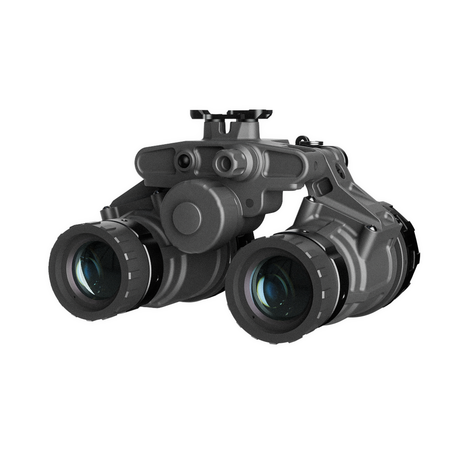

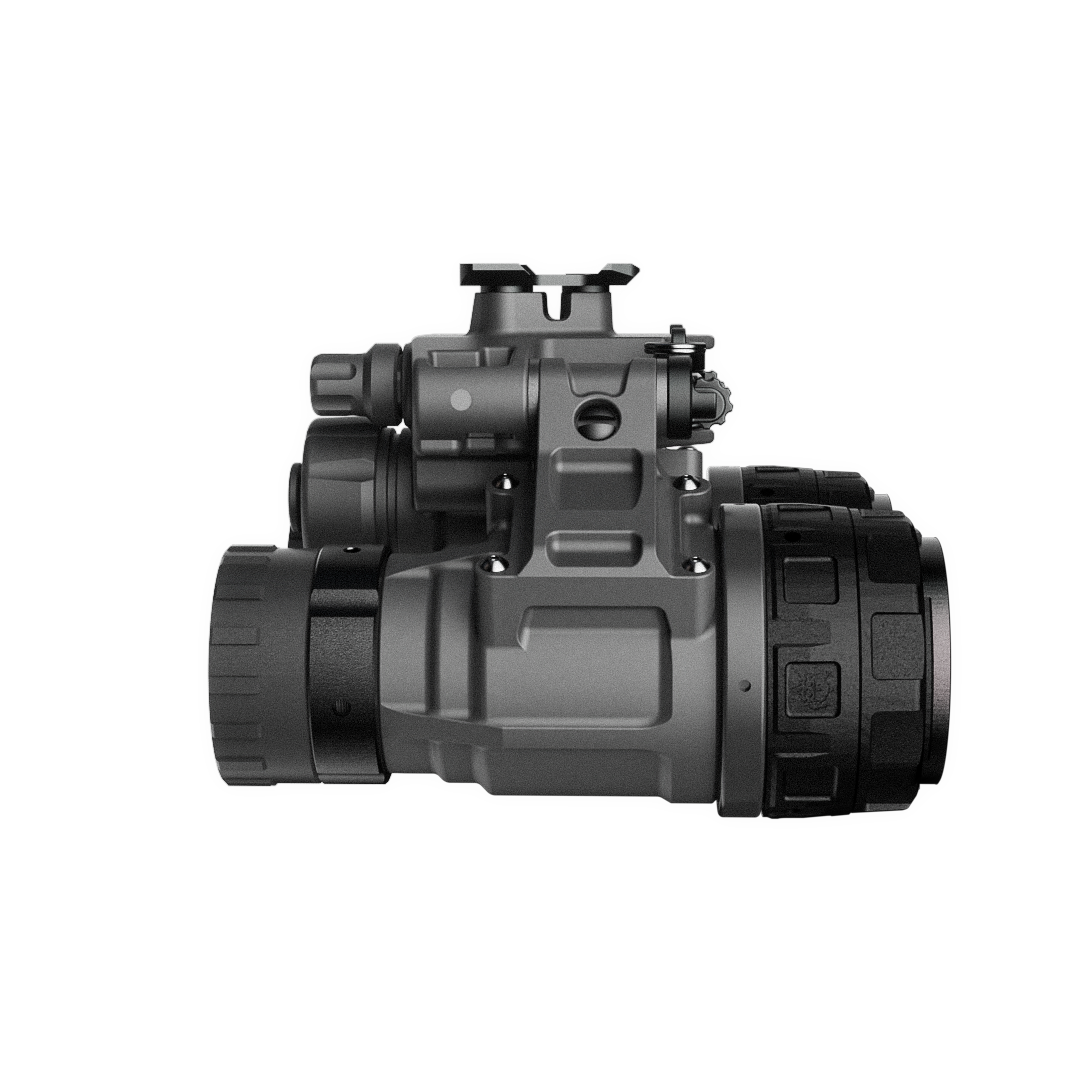

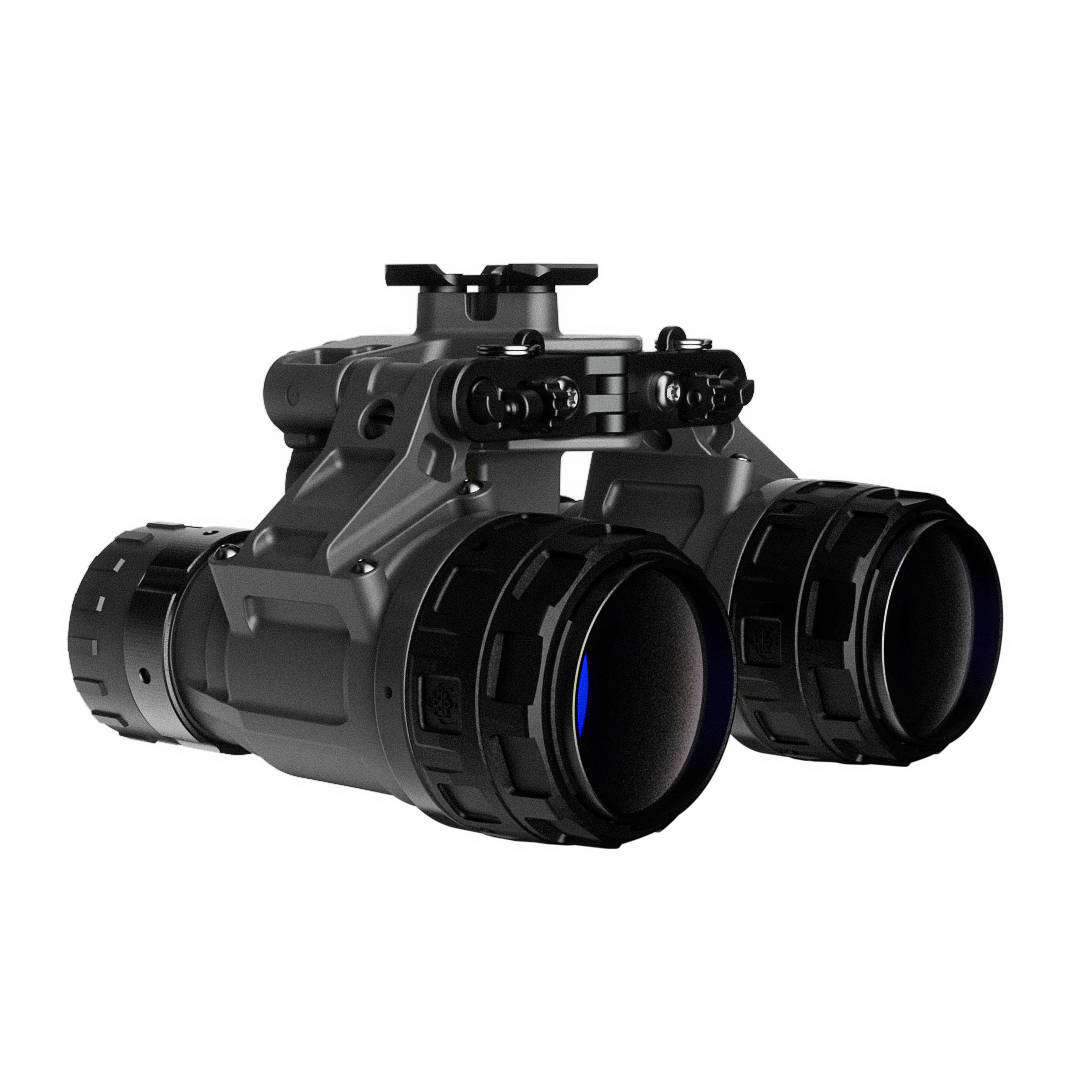

About the U.A.N.V.B.- S.C. "Raptor"
The Ultra-Light Articulating Night Vision Binocular – Single Control (U.A.N.V.B.-S.C.), known as the “Raptor,” builds on the lessons of previous Nocturn Industries models and incorporates direct user feedback. Engineered with a cutting-edge carbon fiber reinforced thermoplastic composite, our injection molded material surpasses traditional polymer solutions and rivals 6061-T6 aluminum in tensile strength.
It features an ergonomic single control knob for both power and gain adjustment. Double-tapping the knob activates the IR illuminator, with an integrated indicator showing its status, and the brightness can be adjusted while the illuminator is active. Through the same knob users can disable or enable auto off when stowed. A low battery indicator alerts users when battery replacement is required.
The Raptor is compatible with standard EGAC MX-11769 and 3-pad MX-11769 image intensifier tubes, as well as PVS-14 optics and accessories. It includes an on-board battery compartment and has an external LEMO 2-pin power port. The Raptor’s image tube pod is interchangeable with U.N.V.M. “Talon”. Low-profile interpupillary distance (IPD) knobs allow easy, tool-free adjustment for rapid setup and user comfort.
The Raptor is fully designed and assembled in the United States, combining lightweight design, rugged durability, and operational versatility for professional night vision applications.
- High strength hybrid fiber reinforced injection molded polymer
- Manual gain control
- Toolless knobbed IPD stops included
- External power port (LEMO 00B)
- User adjustable pod tension
- 26+ hours of battery life (CR123A)
- IR illuminator with adjustable brightness
- Low battery indicator
- Individual pod on/off when articulated
- Designed to meet and exceed IP68+ and MIL-STD-810H standards
- Lifetime repair or replacement warranty
Every Nocturn Industries housing comes with a lifetime warranty, because we don’t just build durable systems, we stand behind them forever
Lifetime repair or replacement of all housing components no questions asked.
(Does not cover damages to intensifier tubes or lens assemblies)
Compatible with PVS-14 spec optics and 18mm MX11769 style with EGAC pigtail or three pad, MX-10160 style with loss of gain control
| Specifications | |
|---|---|
Housing Material The primary material the housing is made of.
|
|
Coating The color options available for housing and the coating that is associated with them.
|
|
Housing Weight The weight of the housing only.
|
|
Device Weight Standard Battery weight is included. This weight is measured with standard optics. Weight can vary based on optics and image intensifiers.
|
|
Device Weight Lightweight Battery weight is included. This weight is measured with RPO 3.0 optics. Weight can vary based on optics and image intensifiers.
|
|
Onboard Power The type of battery option(s) that are available for the housing.
|
|
Outboard Power The type of external power port the housing has attached to it.
|
|
Manual Gain Ability for the user to control the brightness of the image, making it clearer in low light by increasing the sensitivity of the device.
|
|
IR Illuminator An IR illuminator is a device that emits invisible infrared light to enhance the performance of night vision equipment in low or no light conditions.
|
|
Individual pod on/off The pods of the night vision housing will turn off automatically when rotated out of the way and turn on when rotated down. This is done individually per side.
|
|
Tube Type Type of image intensifier tubes that are compatible with the housing.
|
|
Low Battery Indicator A red glowing ring will start blinking around the outside edge of the tube when battery life is low.
|
|
Ingress and Durability |
|
