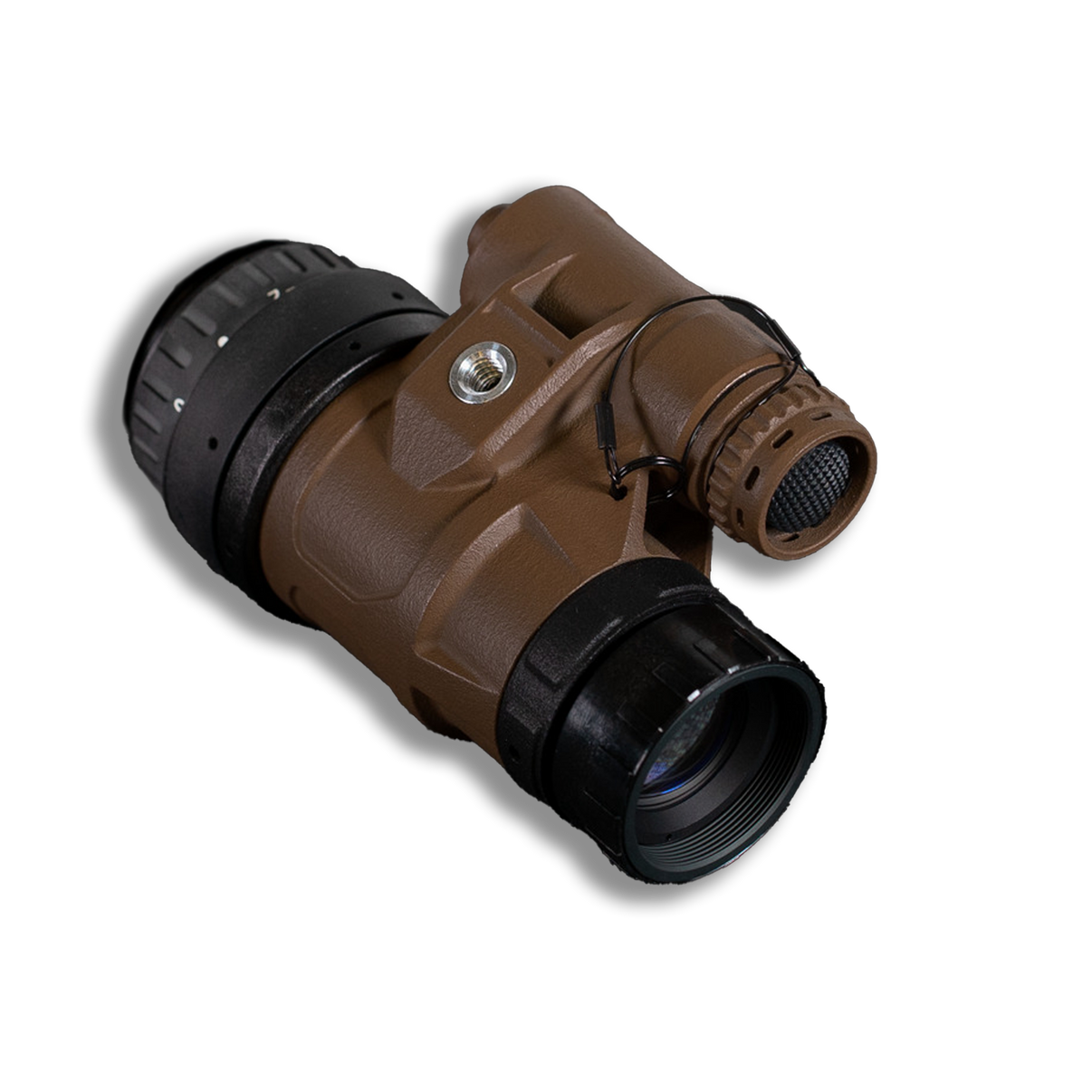

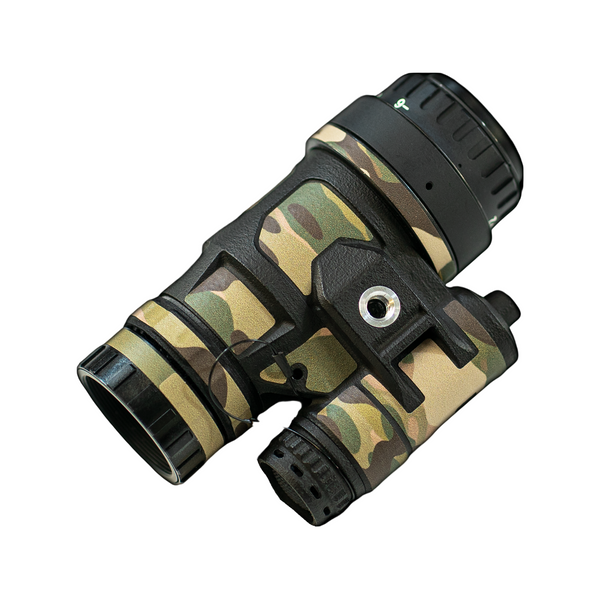

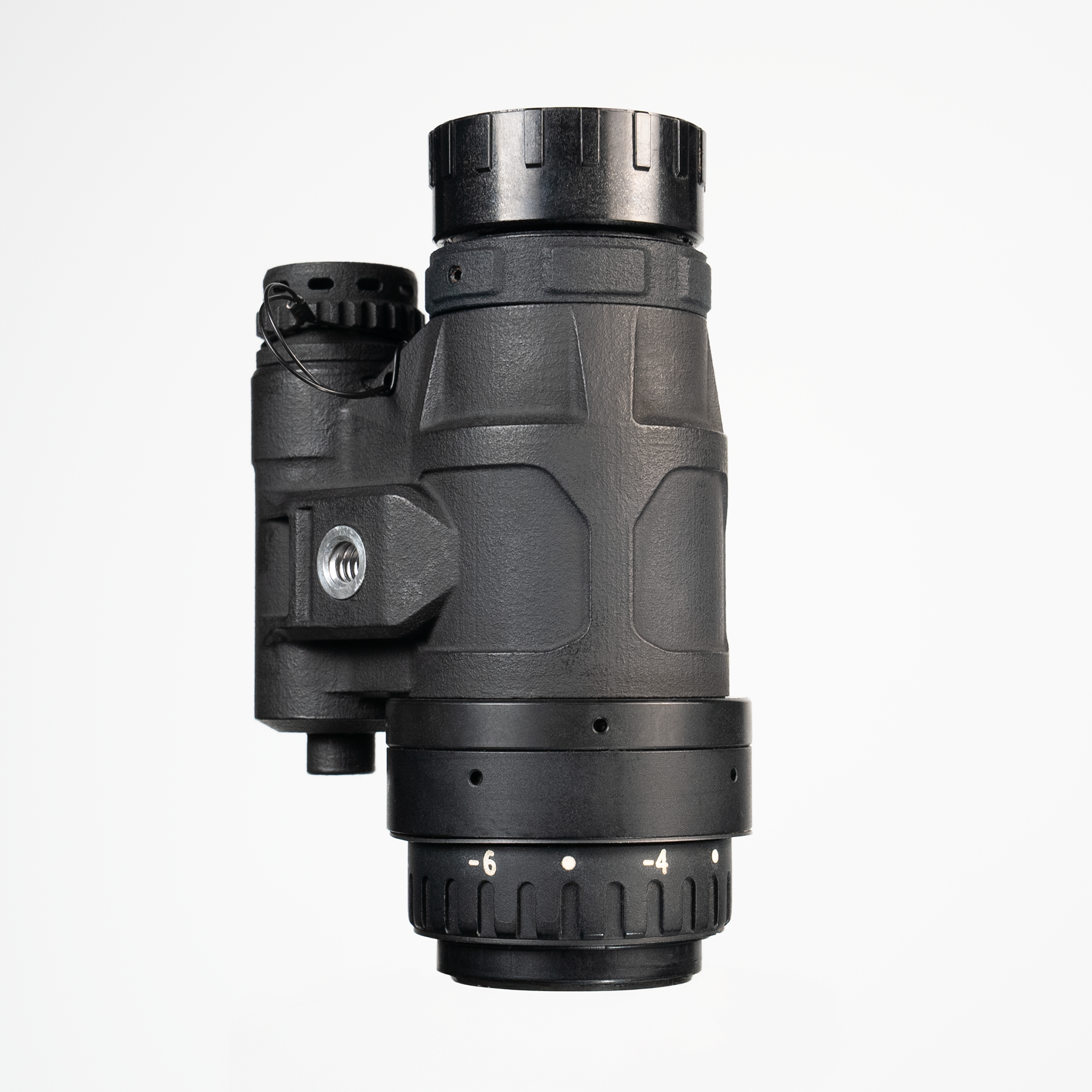

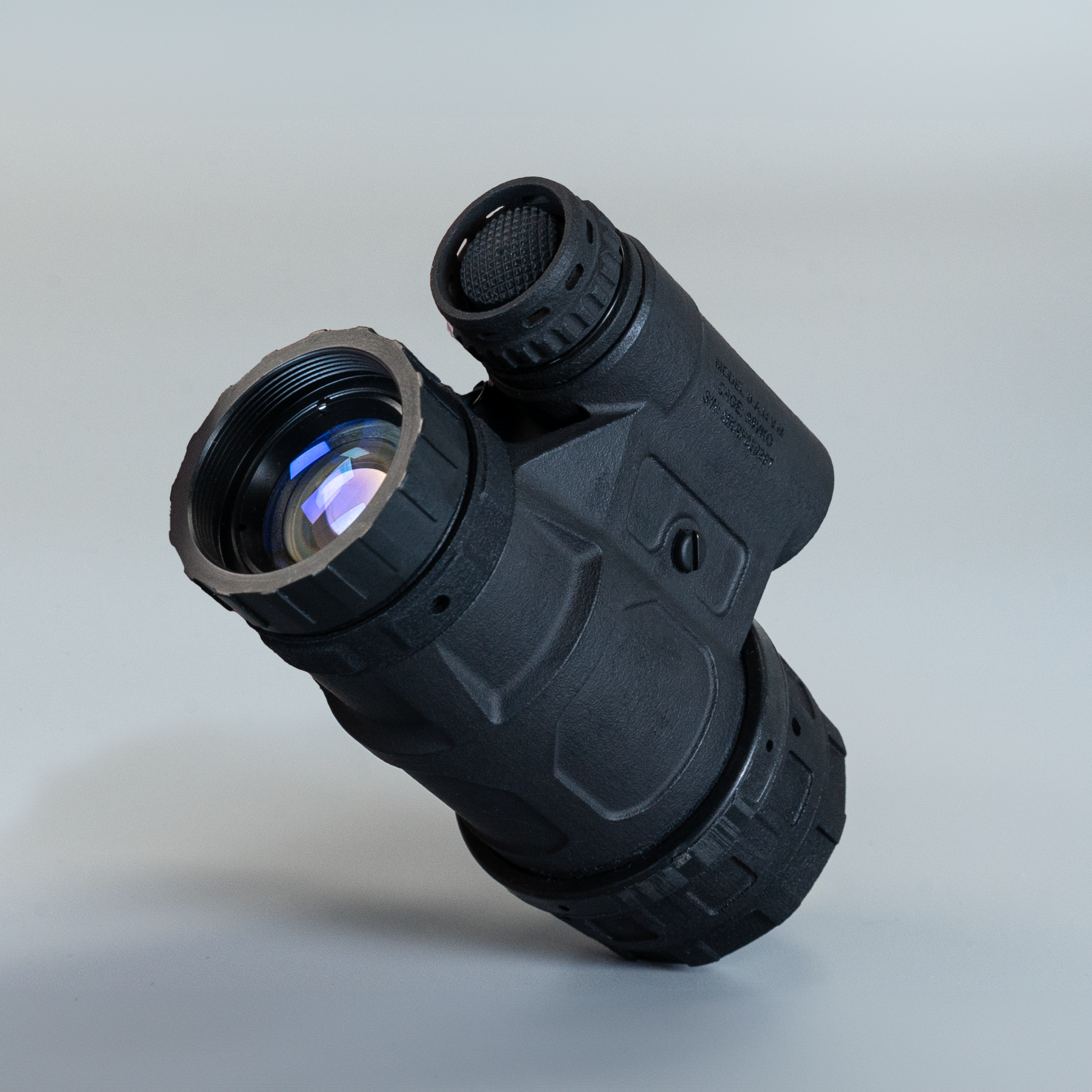

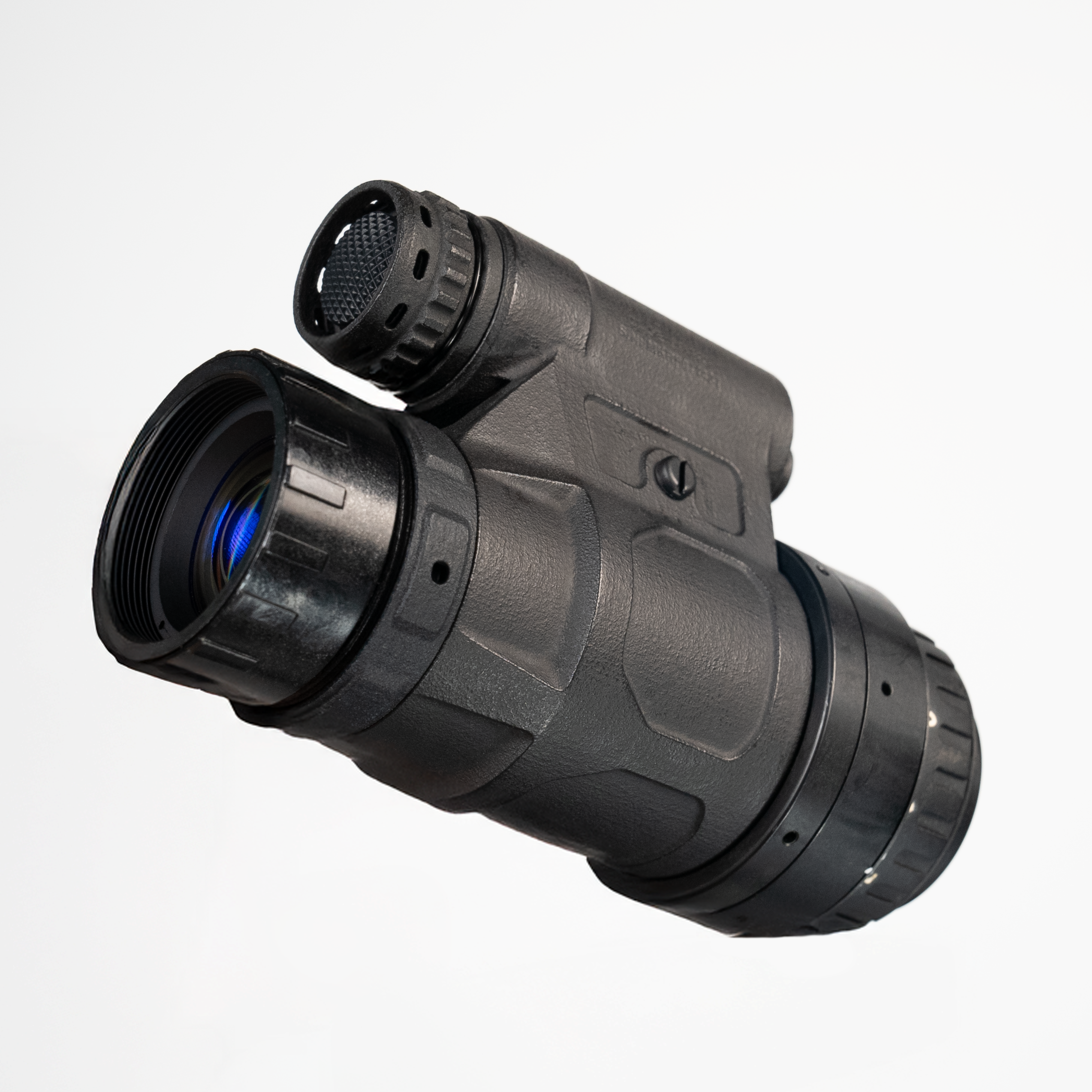

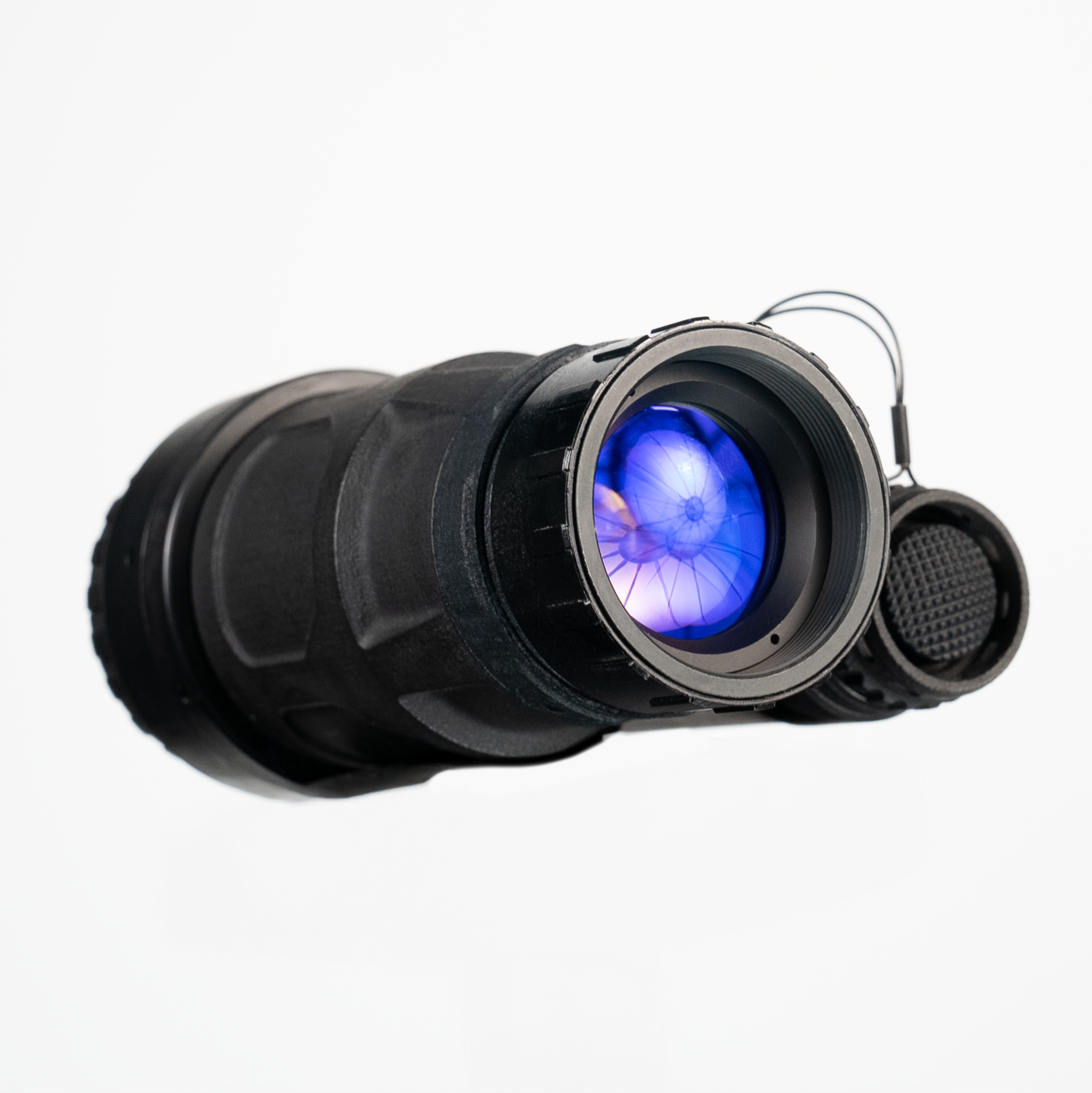

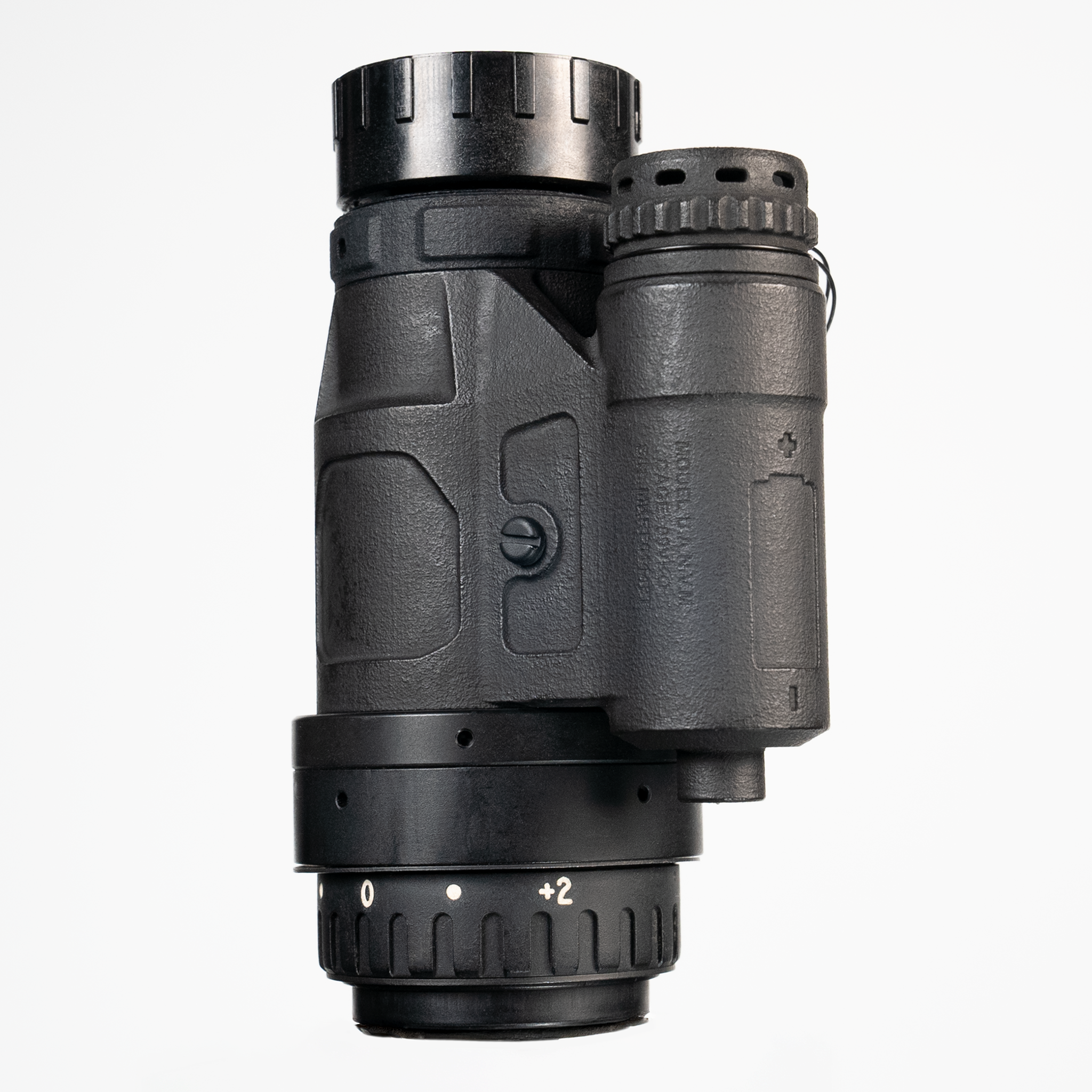

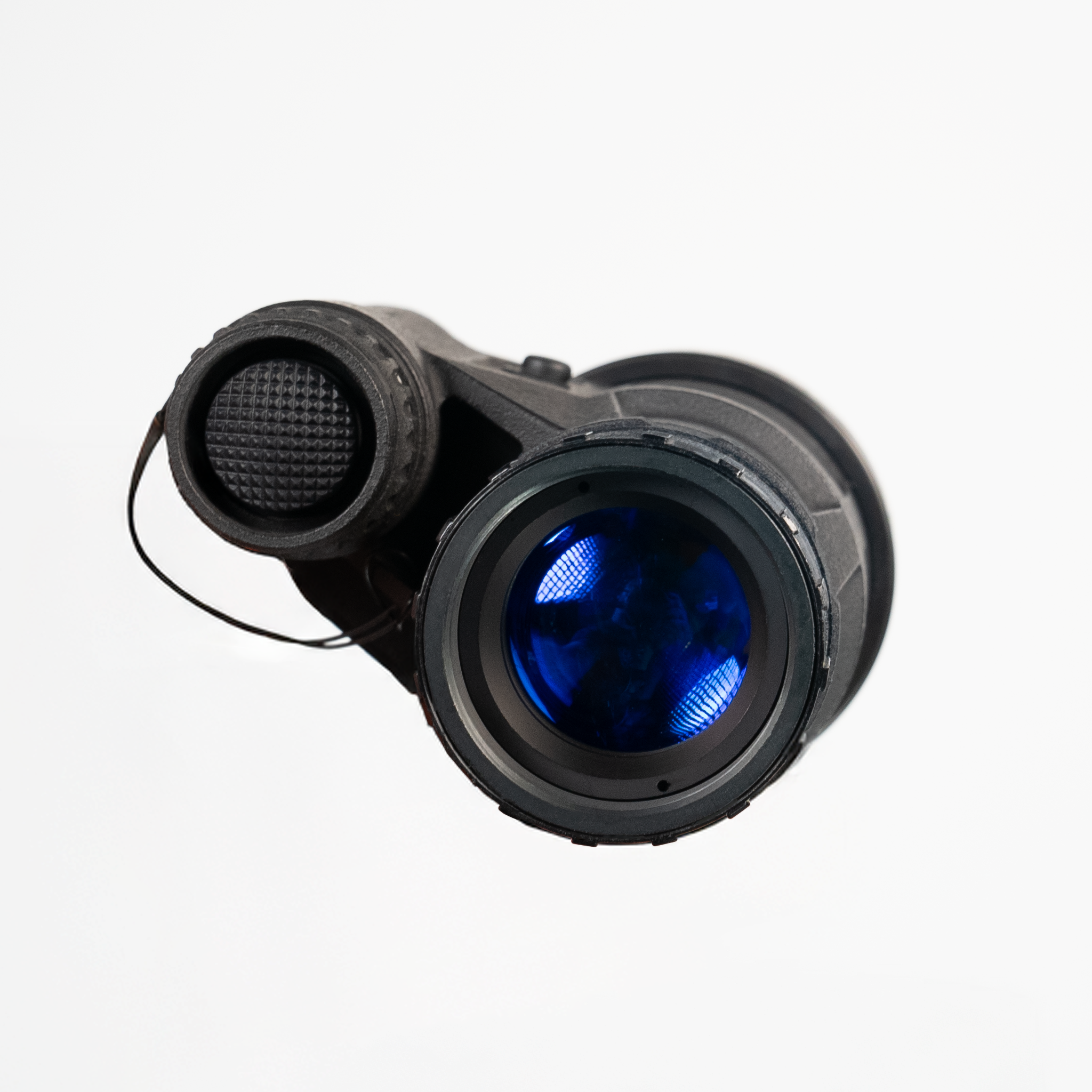

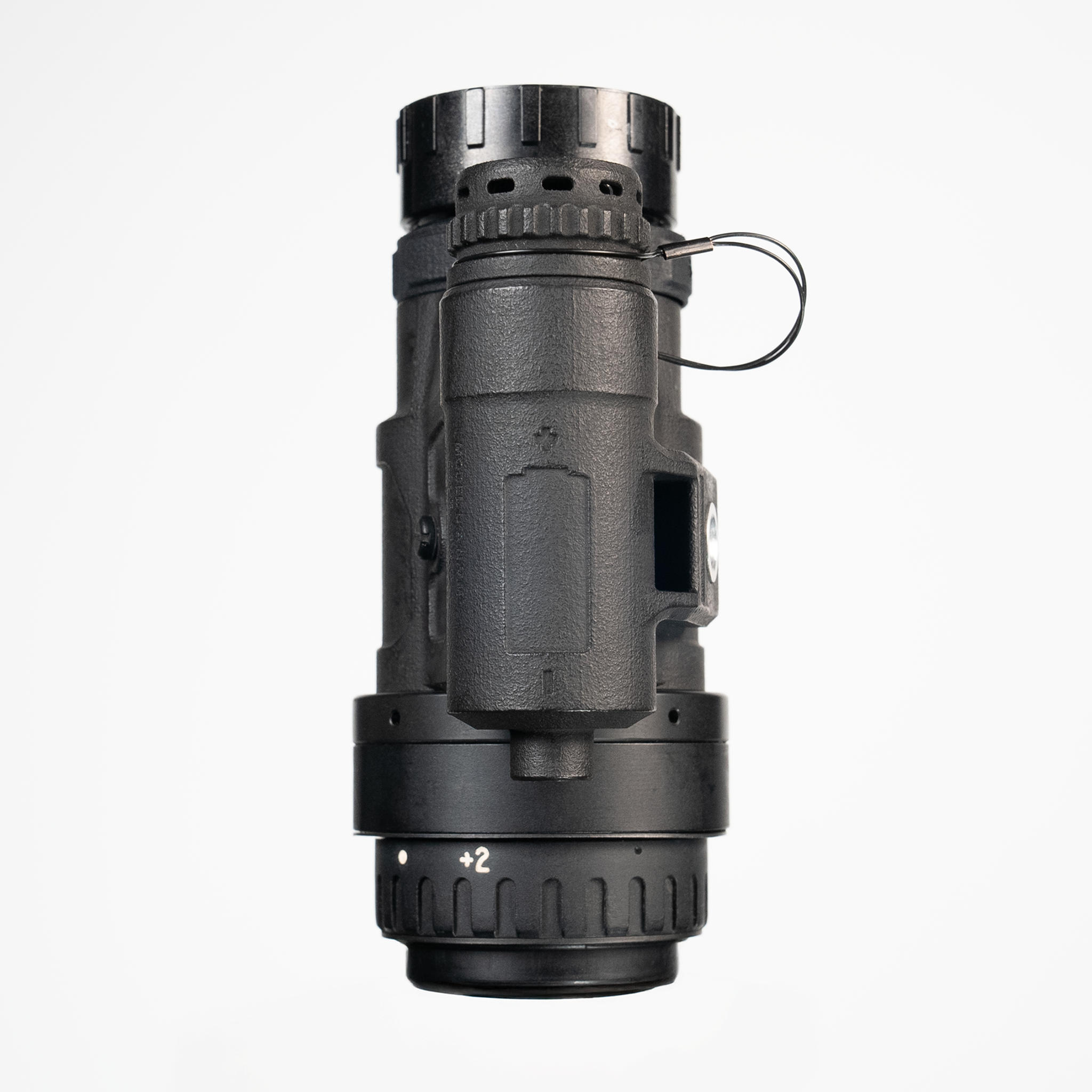

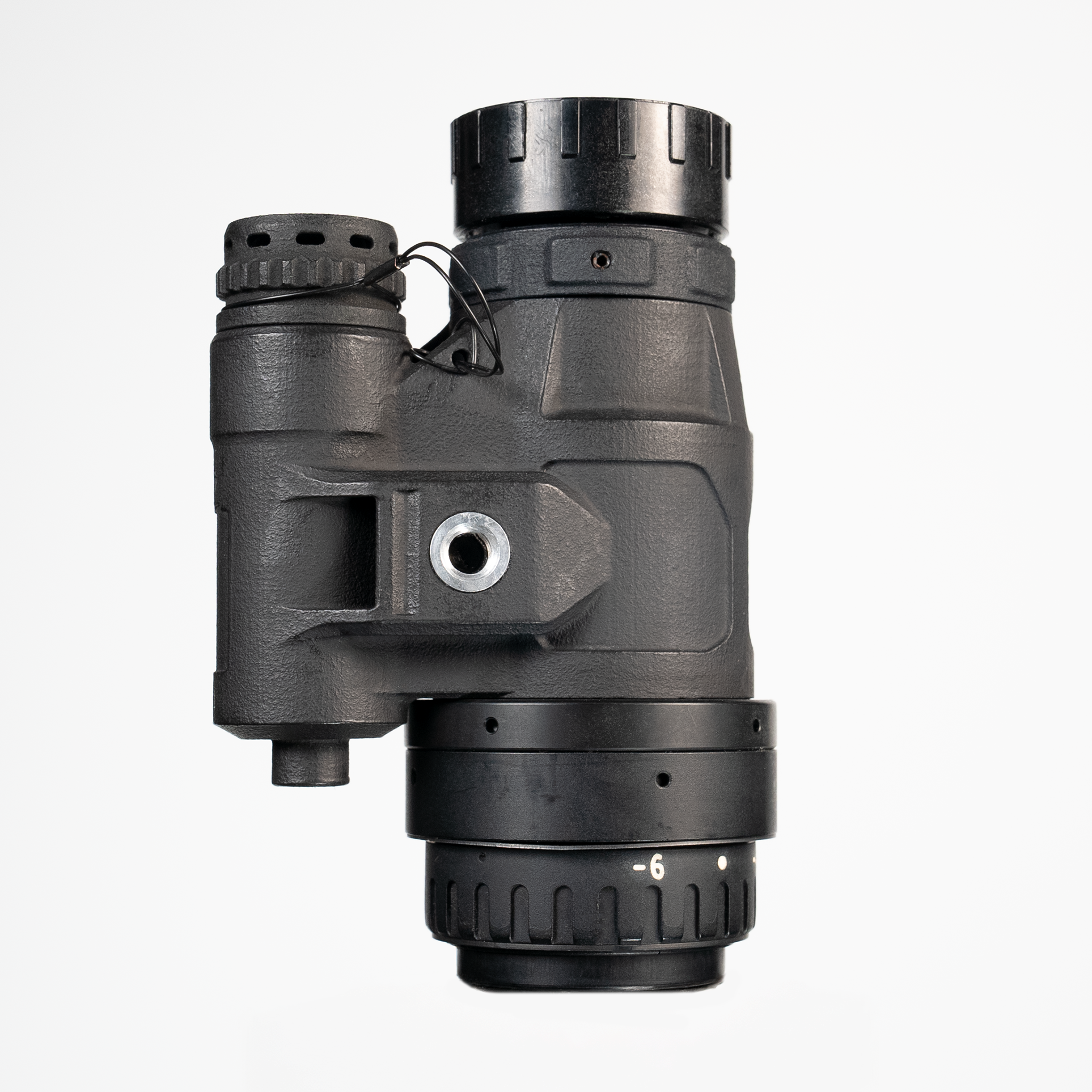

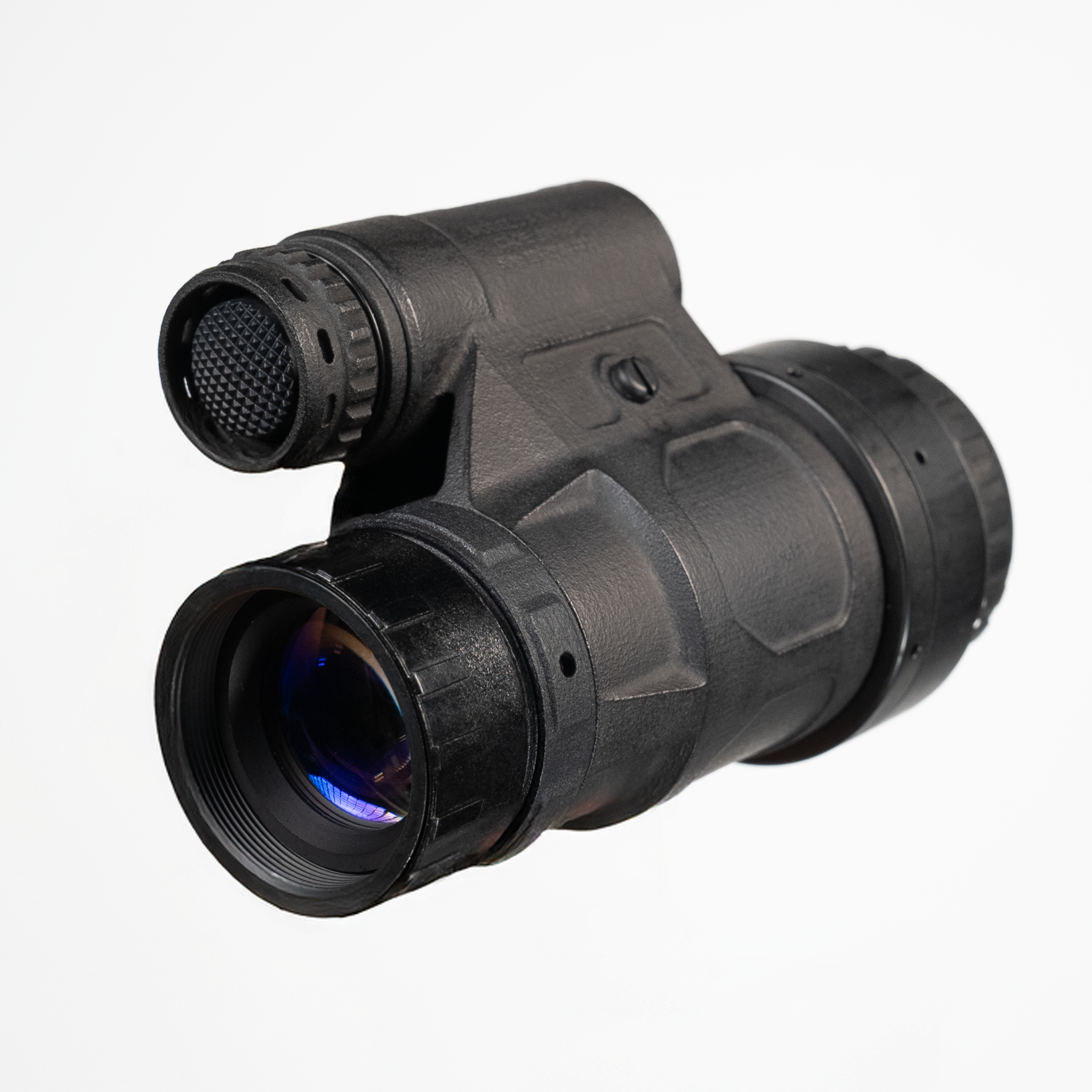

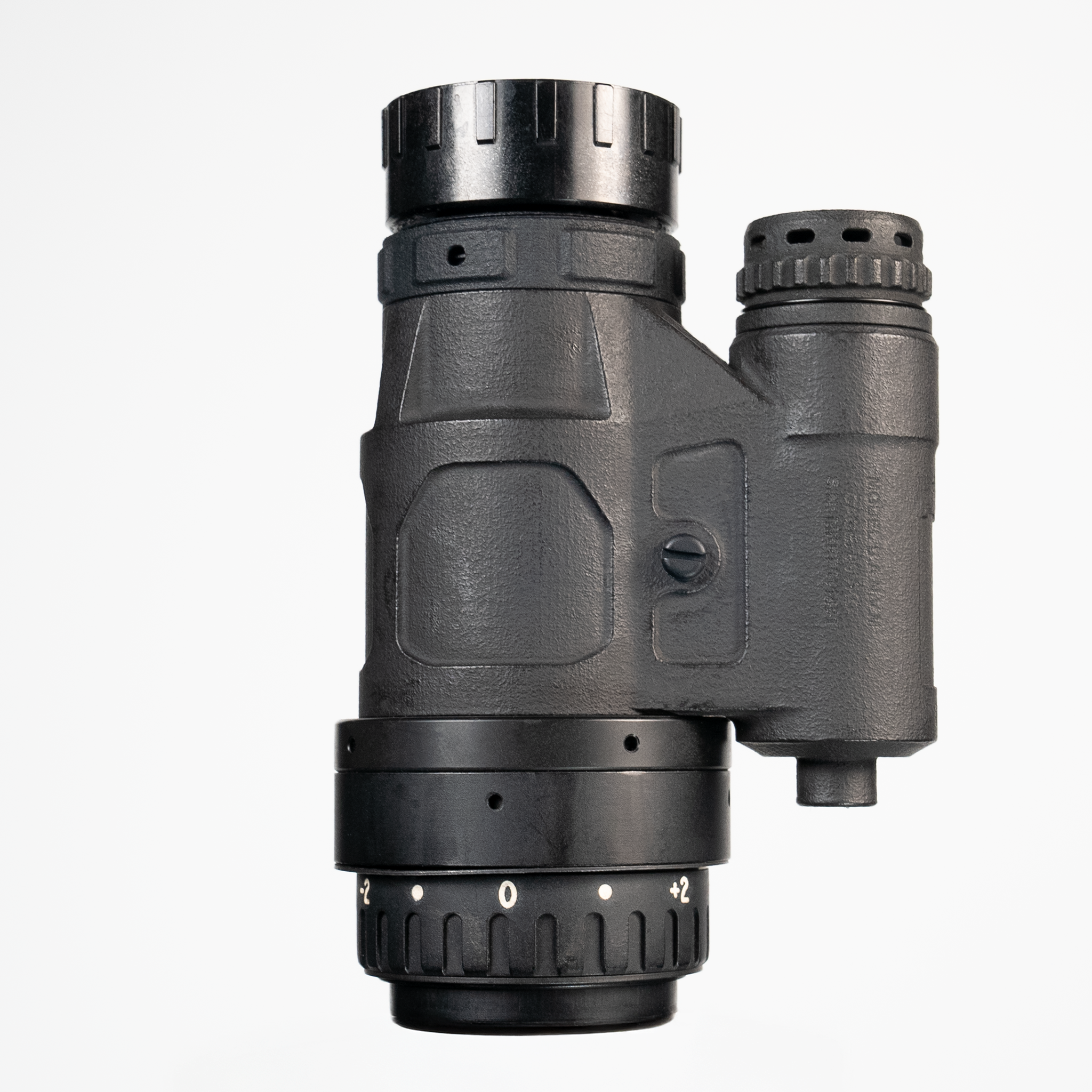

The UANVM "Tanto" Night Vision Monocular. Additional information about the housing is provided further down the page.
Lead Times
Optic Information
| Specification name | Specification Value |
|---|---|

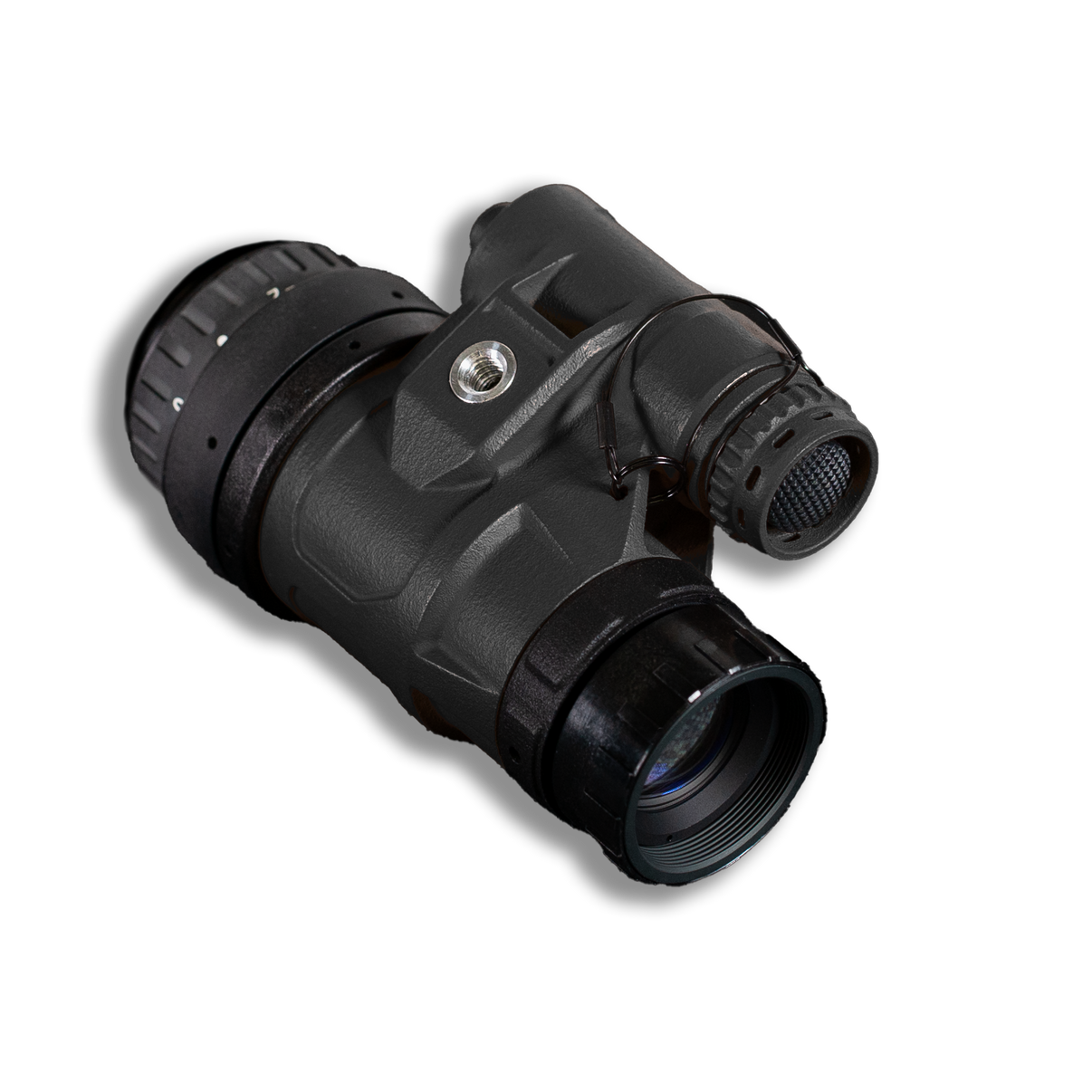

| Color pattern | Black Cerakote, OD Green Cerakote, Coyote Brown Cerakote |
Press & drag to view

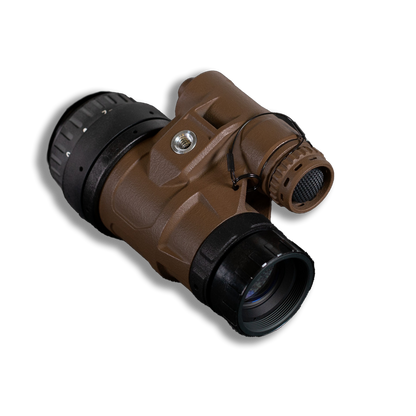

About the U.A.N.V.M. "Tanto"
The Ultralight Adaptable Night Vision Monocular

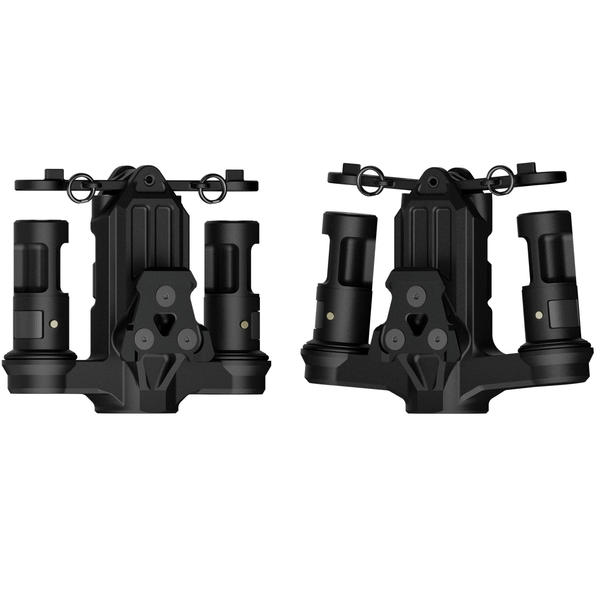

The cornerstone of our adaptable series of night vision devices. This unit mounts via a standard PVS-14 J-arm mount. A unique feature of this monocular is its ability to be adapted to a proprietary powered articulating dual bridge mount called the TAB (Tanto Articulating Bridge) “Daisho” with minimal tools or extra parts. The innovative design allows users to transform their monoculars into an articulating binocular in seconds or go from a binocular back to a monocular to share with a partner. To transform into the binocular, simply remove the battery cap and battery, insert the bridge into the battery compartment, and tighten the rear clamp screws on the bridge, done. The bridge enables the use of a single battery for both tubes, has built in IP stops similar to the UANVB “Katana”, and other features when released.
It is simple with a minimalist lightweight design. Push button on/off in the cap to reduce weight and reduce the footprint of the monocular. When assembled to the TAB “Daisho” bridge extra features are enabled such as articulation to the side for single or dual eye use. The articulating design also enables users to operate vehicles without limiting head space by eliminating the need to stow the unit upright or to tuck the pods against the helmet when stowed.
This unit is light weight without compromising strength. It is rugged and has been drop from the NATO 1.5 meter drop test standard onto concrete, as well as meets and exceeds MIL-STD-810G.
Every Nocturn Industries housing comes with a lifetime warranty, because we don’t just build durable systems, we stand behind them forever
Lifetime repair or replacement of all housing components no questions asked.
(Does not cover damages to intensifier tubes or lens assemblies)
Compatible with PVS-14 spec optics and 18MM MX-10160 tubes. MX-11769 will function but EGAC pigtail will need to be removed.
- Impact resistant polymer
- PVS-14 J-arm style mount compatible
- Lightweight and robust design
- Simple push button on/off design
- 50 hours of battery life (CR123A)
- ANVIS optic compatible variant
- Designed to meet and exceed IP68+ and MIL-STD-810H standards
- Lifetime repair or replacement warranty
Full Specs can be found lower on the page.
| Specifications | |
|---|---|
Housing Material The primary material the housing is made of.
|
|
Coating The color options available for housing and the coating that is associated with them.
|
|
Housing Weight The weight of the housing only.
|
|
Device Weight Standard Battery weight is included. This weight is measured with standard optics. Weight can vary based on optics and image intensifiers.
|
|
Device Weight Lightweight Battery weight is included. This weight is measured with RPO 3.0 optics. Weight can vary based on optics and image intensifiers.
|
|
Onboard Power The type of battery option(s) that are available for the housing.
|
|
Outboard Power The type of external power port the housing has attached to it.
|
|
Manual Gain Ability for the user to control the brightness of the image, making it clearer in low light by increasing the sensitivity of the device.
|
|
IR Illuminator An IR illuminator is a device that emits invisible infrared light to enhance the performance of night vision equipment in low or no light conditions.
|
|
Individual pod on/off The pods of the night vision housing will turn off automatically when rotated out of the way and turn on when rotated down. This is done individually per side.
|
|
Tube Type Type of image intensifier tubes that are compatible with the housing.
|
|
Low Battery Indicator A red glowing ring will start blinking around the outside edge of the tube when battery life is low.
|
|
Ingress and Durability |
|
