Regular price $650.00 USD
Regular price Sale price $650.00 USD
Shipping calculated at checkout.
External Power: No
Color: Black

Information

Learn more about the TAPB "Daisho"

Description

Devices are made to order, estimated minimum wait times are 8-10 weeks.

TANTOS WILL NEED TO BE SENT IN TO COLLIMATE THEM TO THE DAISHO BRIDGE

ONLY CONTAINS BRIDGE. NO NIGHT VISION DEVICE

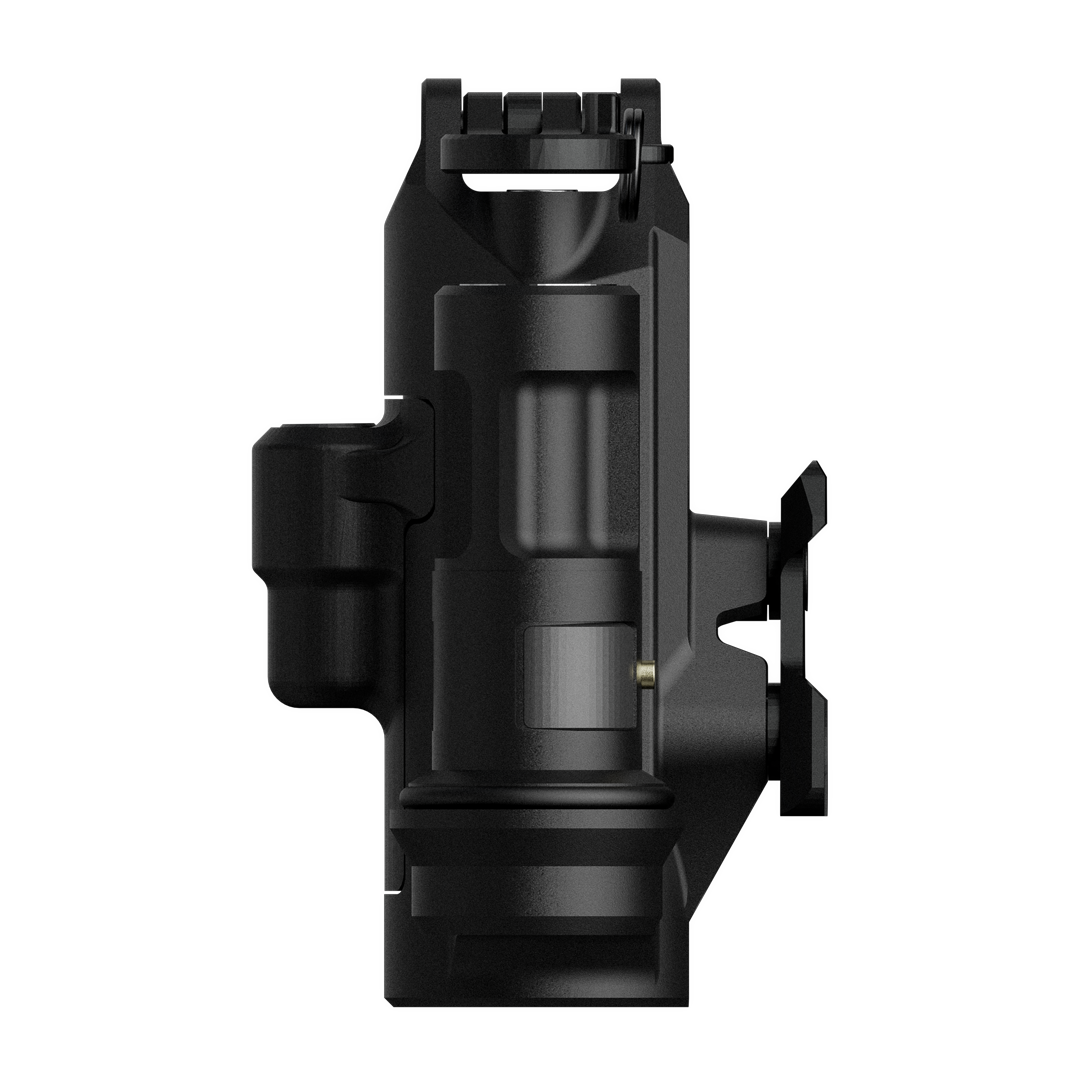

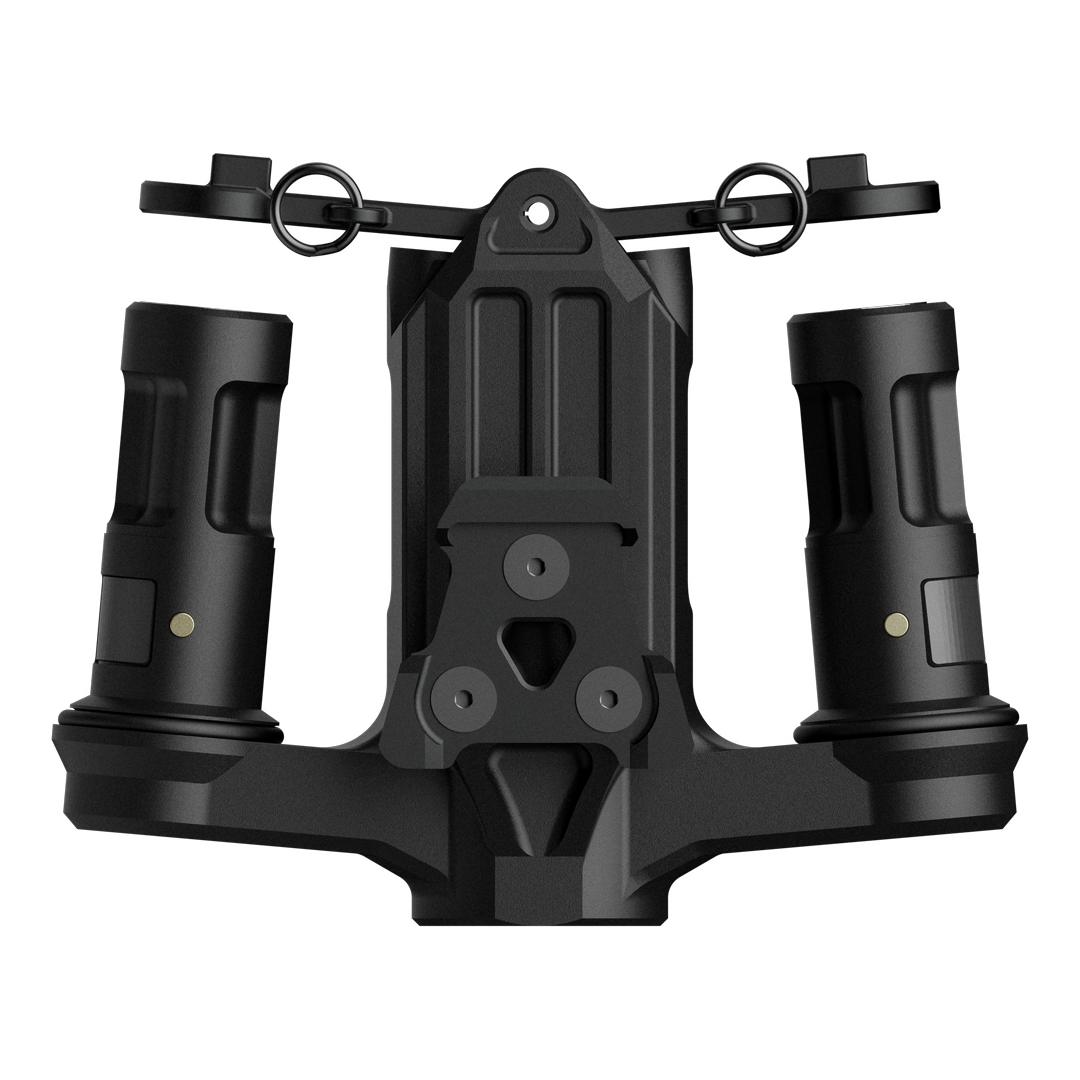

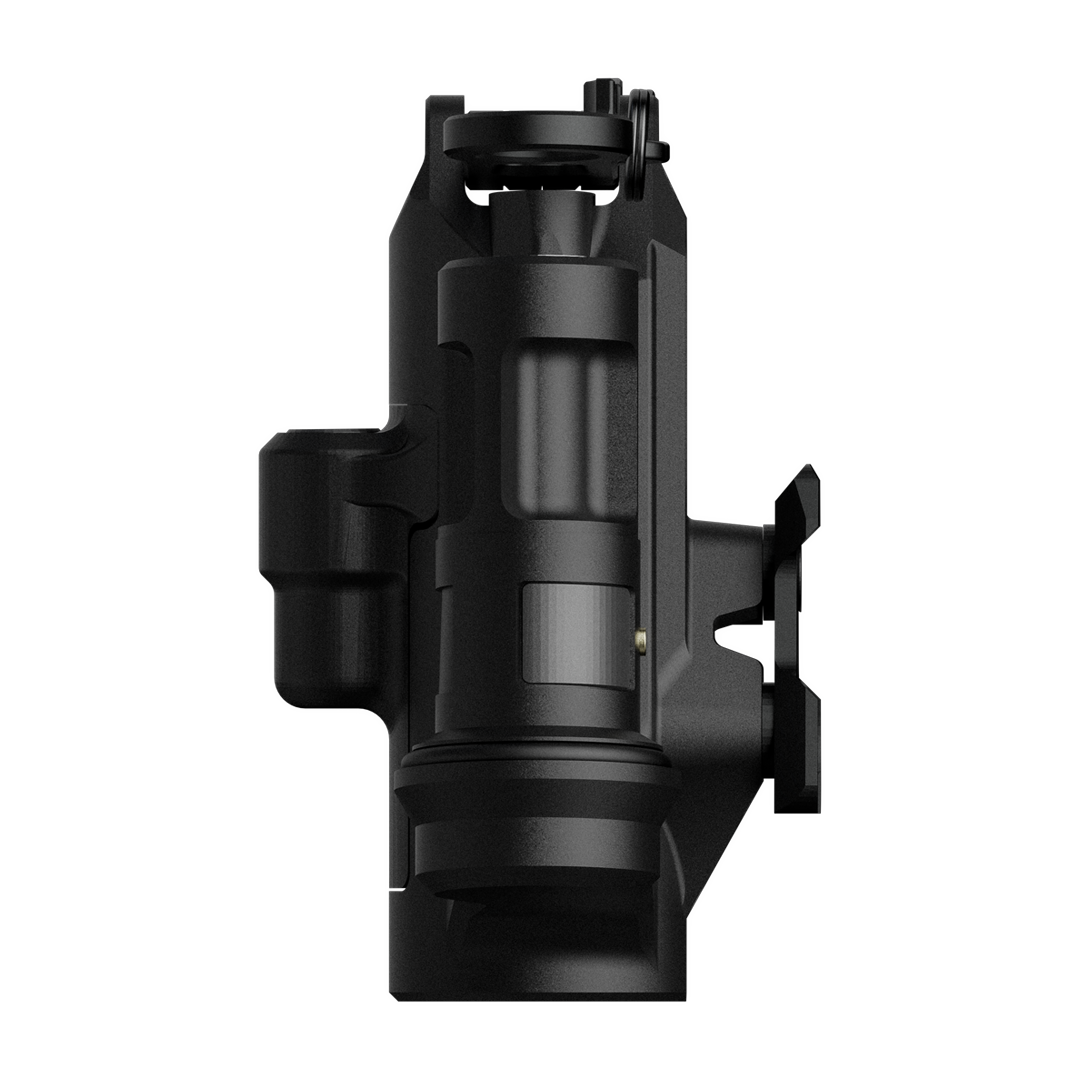

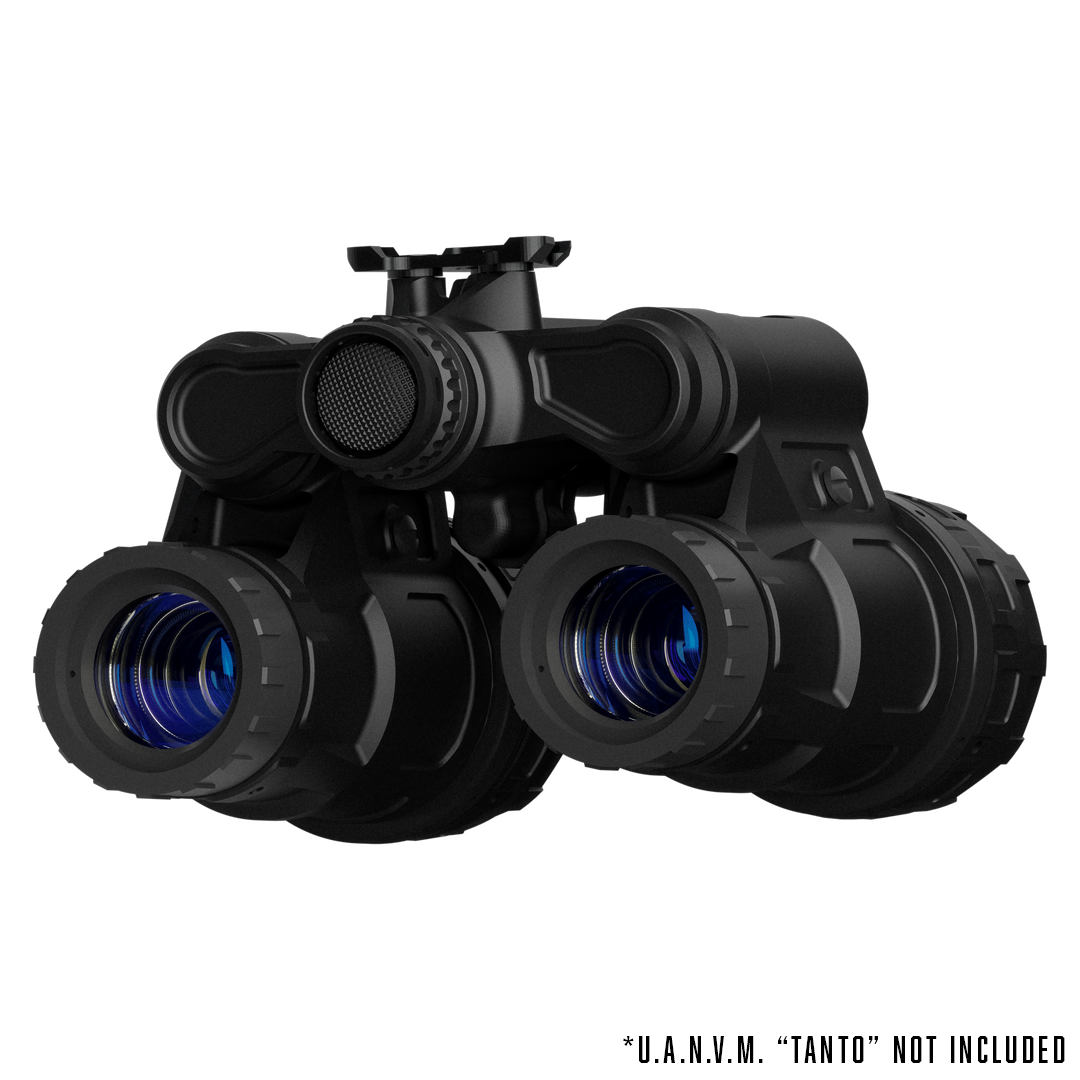

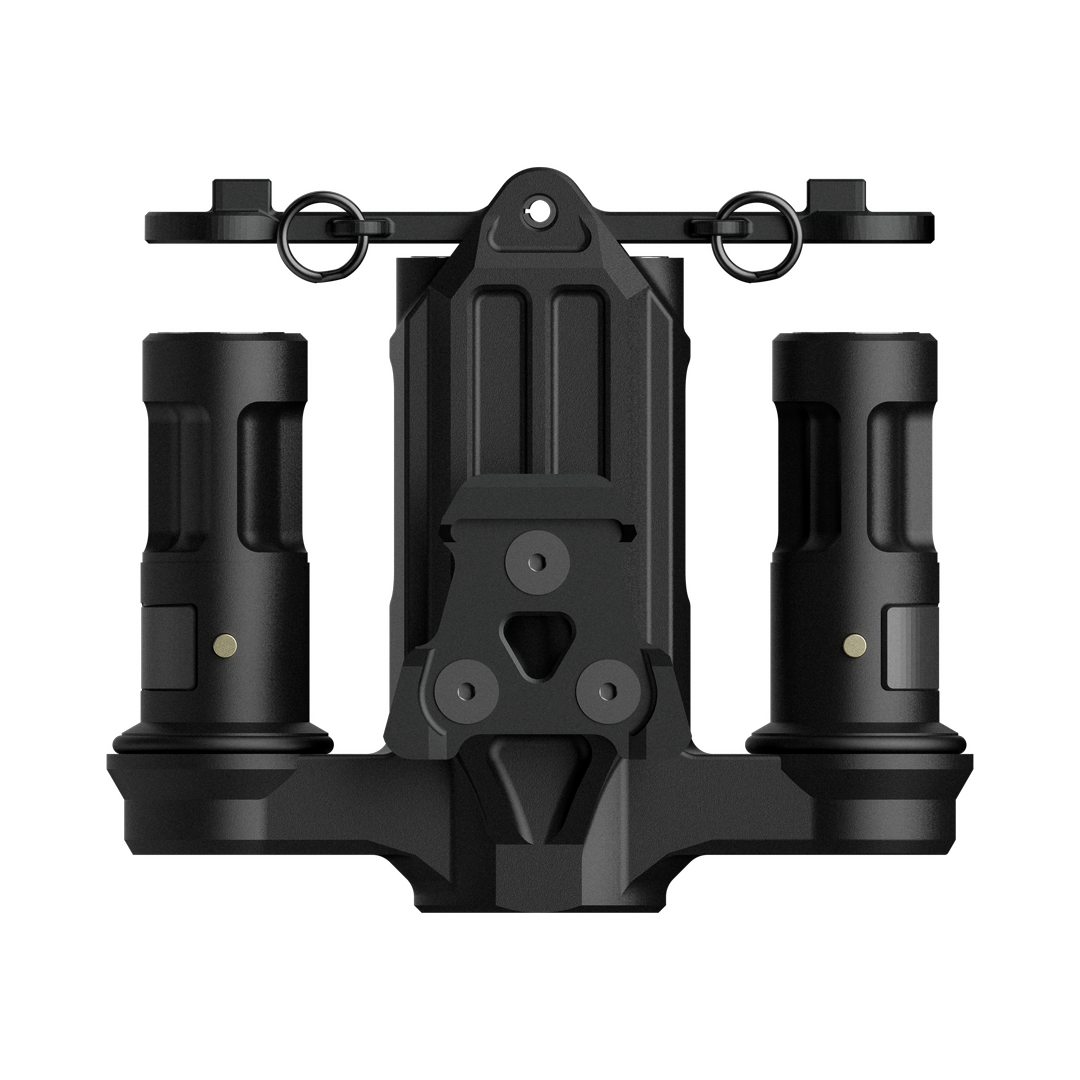

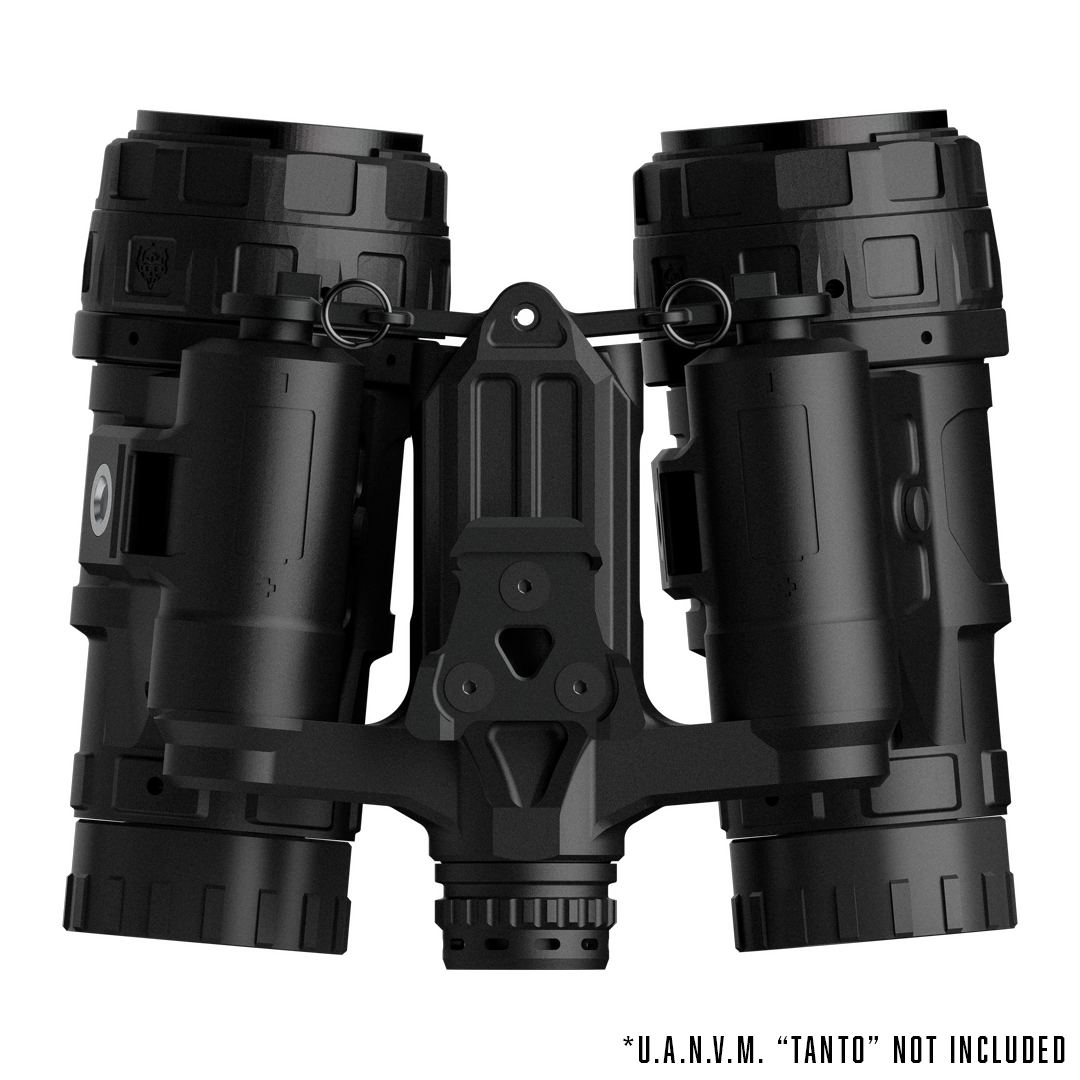

Introducing the long-awaited powered articulating dual bridge mount for the UANVM “Tanto” or TAPB (Tanto Articulating Powered Bridge) “Daisho”. With minimal tools or extra parts two Tantos can now be bridged together into a dedicated binocular system that does not compromise on weight or functionality. The innovative design allows users to seamlessly transform their UANVM “Tanto” monoculars into an articulating binocular in under a minute or go from a binocular back to two monoculars to share with a partner (requires any PVS-14 style J-Arm for monocular use). To transform into the binocular, simply remove the battery cap and battery, insert the bridge into the battery compartment, and tighten the rear clamp screws on the bridge, done. The bridge enables the use of a single battery for both tubes, has optional built in IPD stops, individual pod power on/off when articulated to the side, etc. similar to the UANVB “Katana.” A LEMO remote power port option is available as well.

Like all our products, this carries our unlimited lifetime warranty.

Specifications

Weight *Weights can vary between optics, tubes and baseplate option.*

Daisho Bridge w/LEMO: 78.24g/2.76oz

Tantos and Daisho w/ Mil-Spec optics: 563.58g/19.88oz

Tantos and Daisho w/ RPO optics: 496.11g/17.50oz

Assembly Instructions

Powered Bridge

This bridge accessory has pogo pin contact points to power a Tanto monocular easily and conveniently

Quick Assembly

Quickly adapt your night vision by sliding the Tanto battery terminal onto the Daisho power post. Using only one tensioner screw your Tanto is fixed to the Daisho power bridge. Torque can be applied to the screw to control articulation stiffness. With only one screw you can break away for use as a monocular or use as a binocular in moments

Lemo Baseplate

The Daisho can be built with an optional LEMO baseplate for use with an external battery pack for extended hours (90+) This will be a 00B Lemo port. The LEMO port is positioned so the wire can be passed straight through the sled of your mount to eliminate snag hazard and loose wires

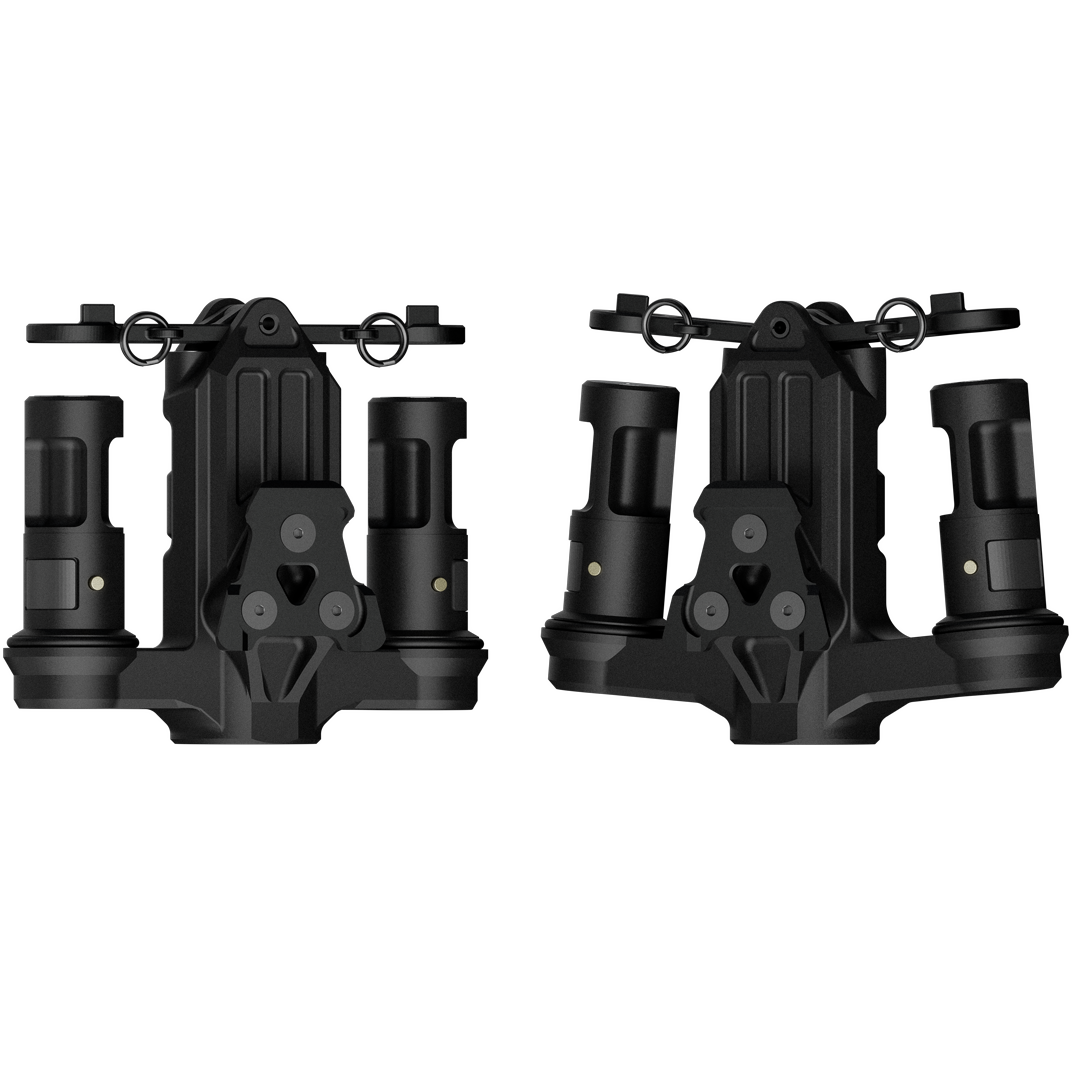

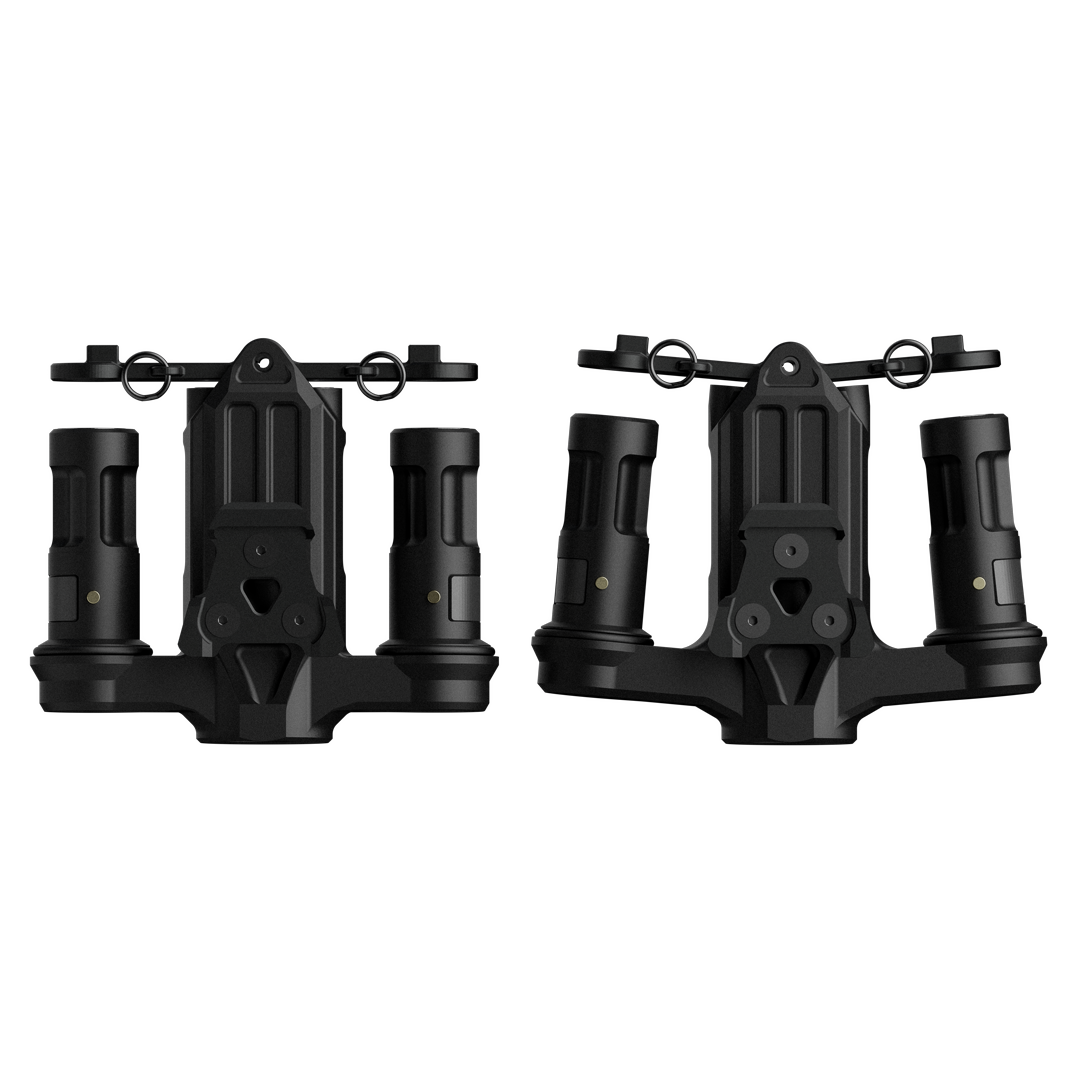

Independent Articulation On/Off

When assembled into binoculars the pods will turn on and off individually when articulated just like the Katana dedicated binocular. This allows for much longer battery life with the ability to turn off an individual or both pods with the ease of just articulating out of the line of sight

Optional IPDS stop

IPD stops can easily be screwed on for all the features of a dedicated binocular

COMPACT LIGHTWEIGHT

The Daisho bridge turns your Tanto monoculars into and incredibly lightweight and compact binocular that can be broken away at any point with ease into monoculars once again then reassembled whenever its convenient
