*This device is still in development as a result some specifications may change when going into production.
Lead Times
| Specification name | Specification Value |
|---|---|
| Color pattern | Black Cerakote, Coyote Brown Cerakote, OD Green Cerakote |
Press & drag to view

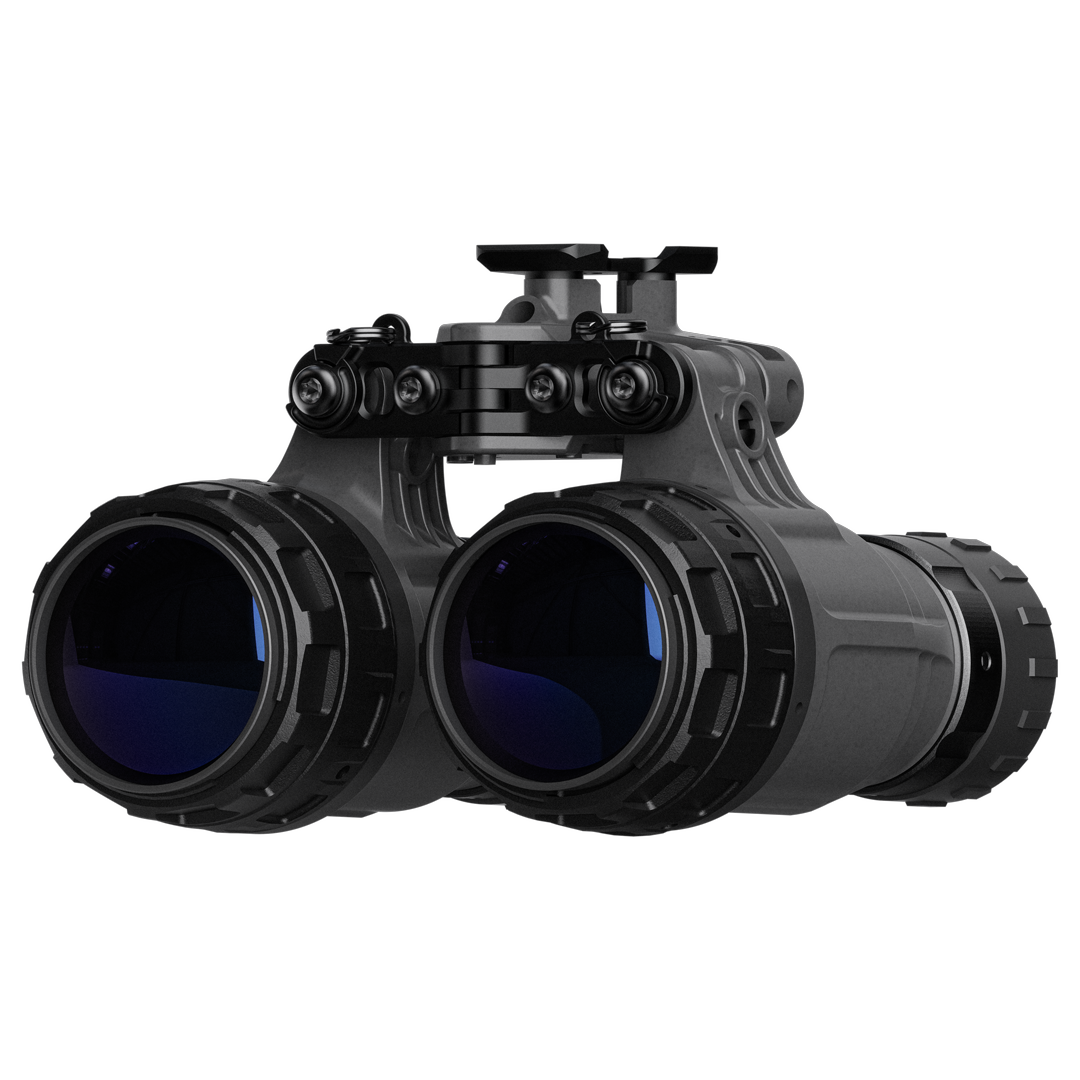

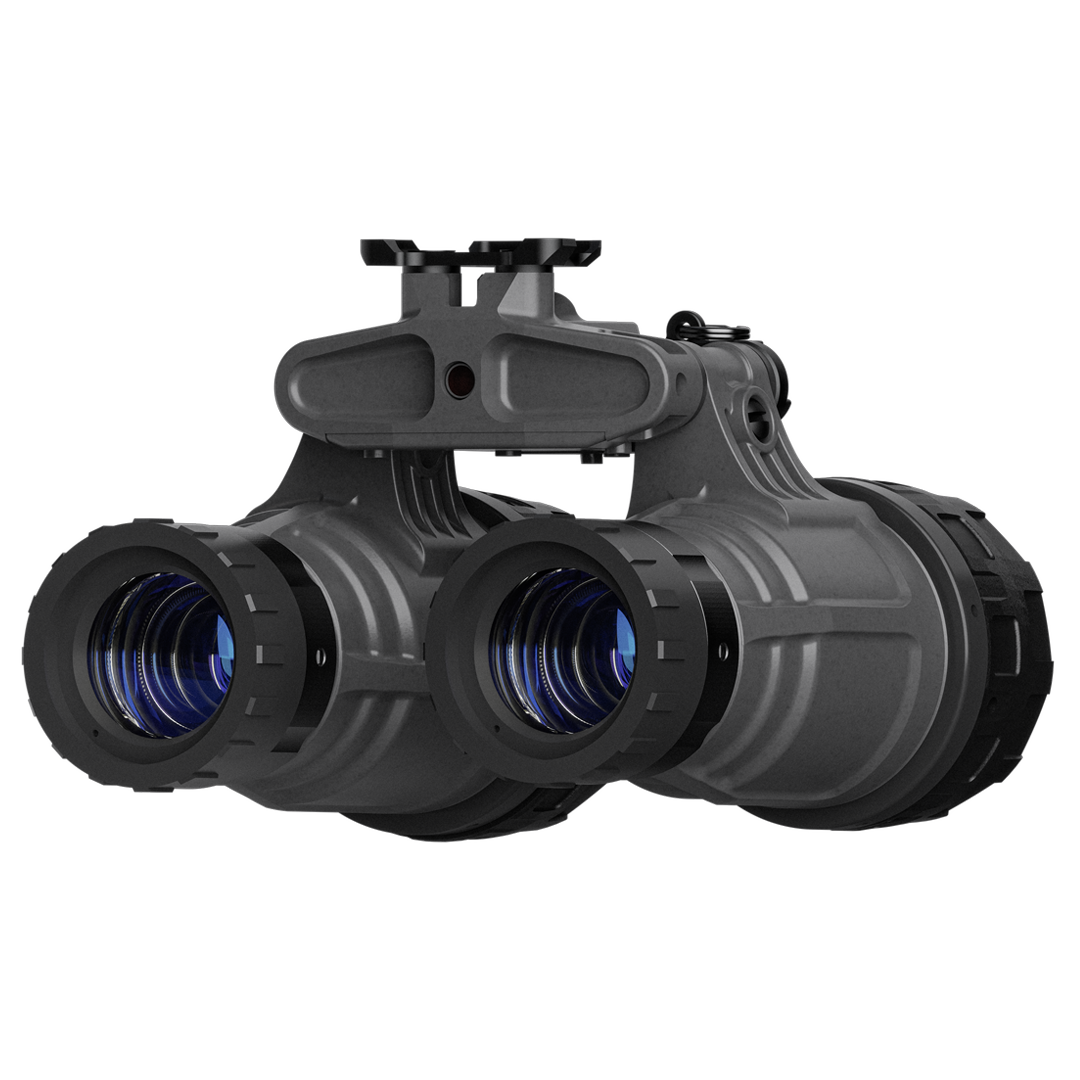

About the U.A.N.V.B.- O.C. "Samurai"
The Ultralight Articulating Night Vision Binocular – Out-board Control (U.A.N.V.B.-O.C.), known as the “Samurai,” is an articulating binocular system engineered with a cutting-edge carbon fiber reinforced thermoplastic composite and equipped with a full suite of out-board controls via its patented proprietary control pack. Advanced polymer materials and manufacturing methods enable an ultra-lightweight yet robust design, including optimized single-piece pod geometry.
This variant of the Samurai system is the lightest full-feature 18mm goggle on the market, combining performance with minimal weight. By relocating power and user controls to the rear of the helmet, operators maintain situational awareness and positive weapon control while making adjustments. This design also distributes weight more efficiently across the head, reducing neck fatigue and enabling extended operational use.
The system includes manual gain control, individual pod stow shutoff, interpupillary distance (IPD) stops, user-adjustable pod tension, IR illuminator with indicator, and a low battery indicator. Multiple control pack options are available, including traditional analog controls or digital push-button interfaces, with flexible
power configurations supporting 2× CR123A or 4× AA batteries, delivering continuous runtimes of approximately 50+ or 60+ hours, respectively.
- High strength hybrid fiber reinforced injection molded polymer
- Manual gain control located on control pack
- Toolless IPD stops included
- External power port (LEMO 00B)
- User adjustable pod tension
- 100+ hours of battery life (4x CR123A)
- IR illuminator
- Low battery indicator
- Individual pod on/off when articulated
- Designed to meet and exceed IP68+ and MIL-STD-810H standards
- Lifetime repair or replacement warranty
Every Nocturn Industries housing comes with a lifetime warranty, because we don’t just build durable systems, we stand behind them forever
Lifetime repair or replacement of all housing components no questions asked.
(Does not cover damages to intensifier tubes or lens assemblies)
Compatible with PVS-14 spec optics and 3 Contact pad style 18mm MX-11769, 18mm MX-11769 style with EGAC pigtail removed, and replaced with adapter, or MX-10160 with loss of manual gain
| Specifications | |
|---|---|
Housing Material The primary material the housing is made of.
|
|
Coating The color options available for housing and the coating that is associated with them.
|
|
Housing Weight The weight of the housing only.
|
|
Device Weight Standard Battery weight is included. This weight is measured with standard optics. Weight can vary based on optics and image intensifiers.
|
|
Device Weight Lightweight Battery weight is included. This weight is measured with RPO 3.0 optics. Weight can vary based on optics and image intensifiers.
|
|
Onboard Power The type of battery option(s) that are available for the housing.
|
|
Outboard Power The type of external power port the housing has attached to it.
|
|
Manual Gain Ability for the user to control the brightness of the image, making it clearer in low light by increasing the sensitivity of the device.
|
|
IR Illuminator An IR illuminator is a device that emits invisible infrared light to enhance the performance of night vision equipment in low or no light conditions.
|
|
Individual pod on/off The pods of the night vision housing will turn off automatically when rotated out of the way and turn on when rotated down. This is done individually per side.
|
|
Tube Type Type of image intensifier tubes that are compatible with the housing.
|
|
Low Battery Indicator A red glowing ring will start blinking around the outside edge of the tube when battery life is low.
|
|
Ingress and Durability |
|
