Still in Development

The UAPNVG "CHIMERA" is still being developed. Price will be displayed when we are close to production.

UAPNVG
UAPNVG

UAPNVG "Chimera"

Regular price $0.00
Regular price Sale price $0.00
Shipping calculated at checkout.

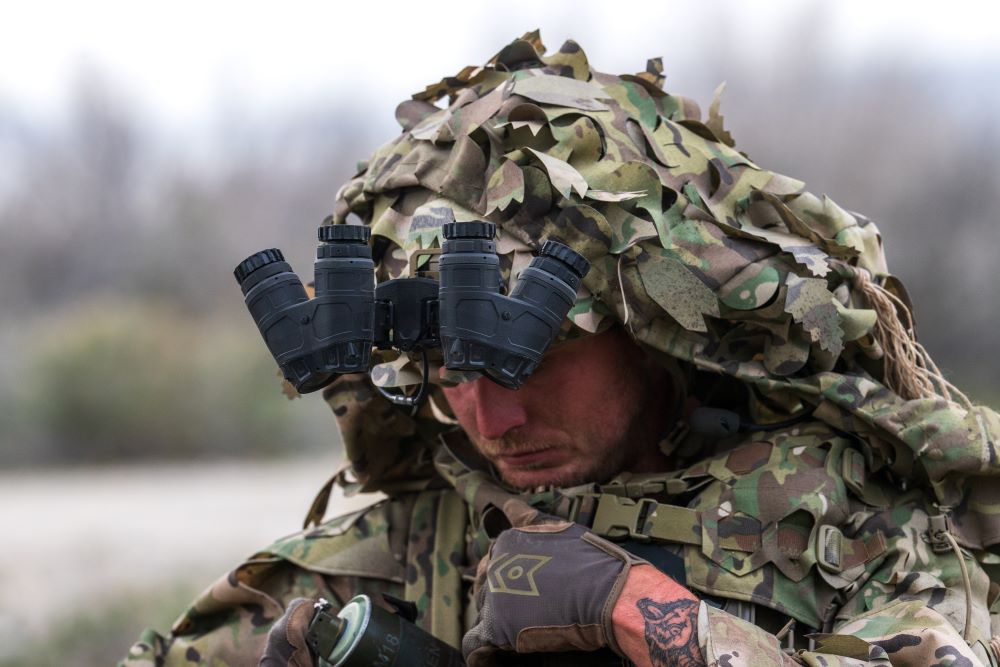

The Ultralight Articulating Panoramic Night Vision Goggle UAPNVG "Chimera" is the next evolution in panoramic nvg systems being the first articulating quad tube device. This patent pending system enables the lowest possible profile by stowing the pods back to the helmet to a profile typical of articulating binos reducing neck fatigue by pulling the center of gravity significantly closer to the natural pivot point of the neck. UAPNVG pods can be stowed individually without fully stowing the device which allows the user to clear door thresholds, increase head clearance in a vehicle, have rapid access to the night vision function, enter and exit vehicles much faster, reduced brush snag hazard, and use weapon mounted optics/thermal devices simultaneously with the goggle. In addition to the stand alone device is a bridge system that is plug and play at a user level with existing panoramic nvg pods offering compatibility with L3 GPNVG18, Lindu QTNVG, ANVIS10, Photonis PD Pro-Q, and more.

Color: Black

Lead time

This product has not been officially launched and lead time is to be determined

Information

Description

PRICING AND FEATURES SUBJECT TO CHANGE

SELECT AN OPTION FROM THE DROP DOWN TO GET THE EMAIL WAITLIST BOX TO APPEAR

The Ultralight Articulating Panoramic Night Vision Goggle UAPNVG "Chimera" is the next evolution in panoramic nvg systems being the first articulating quad tube device. This patent pending system enables the lowest possible profile by stowing the pods back to the helmet to a profile typical of articulating binos reducing neck fatigue by pulling the center of gravity significantly closer to the natural pivot point of the neck. UAPNVG pods can be stowed individually without fully stowing the device which allows the user to clear door thresholds, increase head clearance in a vehicle, have rapid access to the night vision function, enter and exit vehicles much faster, reduced brush snag hazard, and use weapon mounted optics/thermal devices simultaneously with the goggle. In addition to the stand alone device is a bridge system that is plug and play at a user level with existing panoramic nvg pods offering compatibility with L3 GPNVG18, Lindu QTNVG, ANVIS10, Photonis PD Pro-Q, and more.

SELECT AN OPTION FROM THE DROP DOWN TO GET THE EMAIL WAITLIST BOX TO APPEAR

Specifications

Material(s)

High strength hybrid fiber reinforced injection molded polymer, CNC machined 6061-T6 aerospace grade aluminum, aerospace Grade 4 Titanium, Impact resistant polymer.

____________________

Finish

H-Series Cerakote
(Matte Black, Coyote, and OD)

____________________

Tube Type

3 contact pad style 18mm MX-11769 style with EGAC pigtail removed, and replaced with adapter, or MX-10160 with loss of manual gain.

____________________

IR Illuminator

No

____________________

Individual Pod on/off

Yes, individually.

____________________

System Weight

27.1 oz. / 1.69 lbs / 768.3g

____________________

On-Board Power

CR123A onboard with a runtime of ~25hours

____________________

Out-Board Power

Optional LEMO port

____________________

Manual Gain Control

No

____________________

Ingress rating

Exceeds IP-68, and MIL-STD-810H

____________________

Warranty

Lifetime repair or replacement of all housing components no
questions asked. (Does not cover damages to intensifier tubes.
or lens assemblies)

FAQ

*TO BE ADDED SOON*
